Match the following terms with the appropriate sentence that describes it or feature on the figure shown. There are more

[answerhappygod]

Match The Following Terms With The Appropriate Sentence That Describes It Or Feature On The Figure Shown There Are More 1 (75.61 KiB) Viewed 55 times

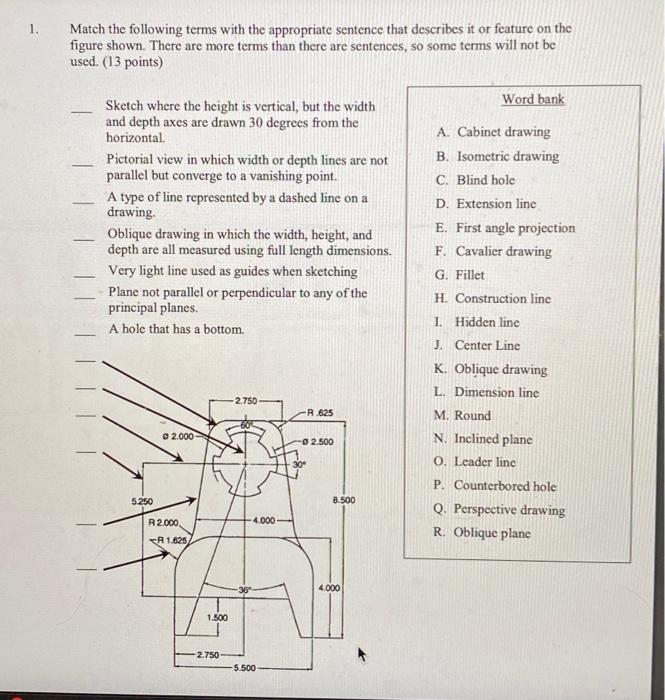

Match the following terms with the appropriate sentence that describes it or feature on the figure shown. There are more terms than there are sentences, so some terms will not be used. (13 points) Sketch where the height is vertical, but the width and depth axes are drawn 30 degrees from the horizontal Pictorial view in which width or depth lines are not parallel but converge to a vanishing point. A type of line represented by a dashed line on a drawing Oblique drawing in which the width, height, and depth are all measured using full length dimensions. Very light line used as guides when sketching Plane not parallel or perpendicular to any of the principal planes. A hole that has a bottom. Word bank A. Cabinet drawing B. Isometric drawing C. Blind hole D. Extension line E. First angle projection F. Cavalier drawing G. Fillet H. Construction line 1. Hidden line J. Center Line K. Oblique drawing L. Dimension line 2.750 R.625 2.000 - 2,500 M. Round N. Inclined plane O. Leader linc P. Counterbored hole Q. Perspective drawing R. Oblique plane 5.250 8.500 R 2.000 4.000 A 1.625 4.000 1.500 2.750 5.500
