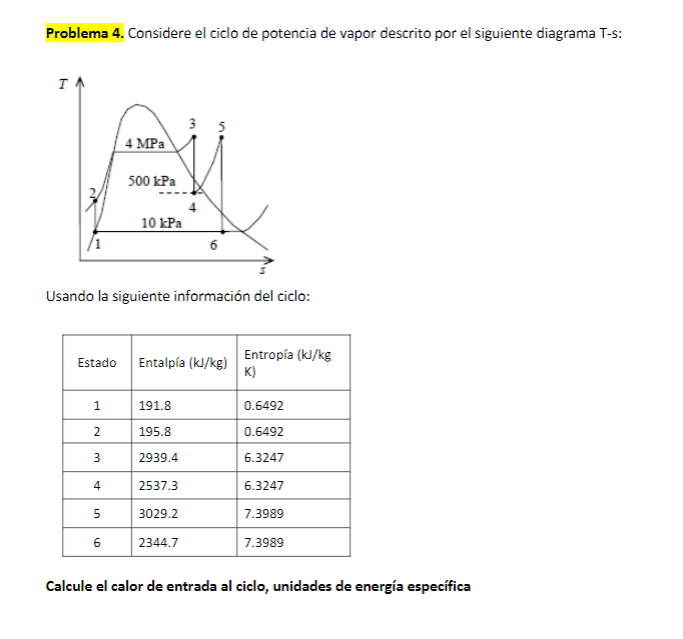

Consider the steam power cycle described by the following T-s
diagram:
Using the following loop information:
Calculate the heat input to the cycle, units of specific
energy
Consider The Steam Power Cycle Described By The Following T S Diagram Using The Following Loop Information Calculate T 1 (50.99 KiB) Viewed 61 times
Problema 4. Considere el ciclo de potencia de vapor descrito por el siguiente diagrama T-s: TA 5 4 MPa 500 kPa 10 kPa 6 Usando la siguiente información del ciclo: Estado Entalpía (kJ/kg) Entropía (kJ/kg K) 1 0.6492 2 191.8 195.8 2939.4 0.6492 3 6.3247 4 2537.3 6.3247 5 7.3989 3029.2 2344.7 6 7.3989 Calcule el calor de entrada al ciclo, unidades de energía específica
