Consider a Brayton cycle with isentropic efficiencies of 0.85.
Using Specific Heats
constants, and the following loop information:
T1=300K
T2s=610K
T3=1000K
T4s=492K
Cp=1.005 kJ/kg K
Cv=0.718 kJ/kg K
k=1.4
R=0.2870kJ/kgK
Calculate the net work of the cycle in units of specific
energy.
Consider A Brayton Cycle With Isentropic Efficiencies Of 0 85 Using Specific Heats Constants And The Following Loop In 1 (61.61 KiB) Viewed 42 times

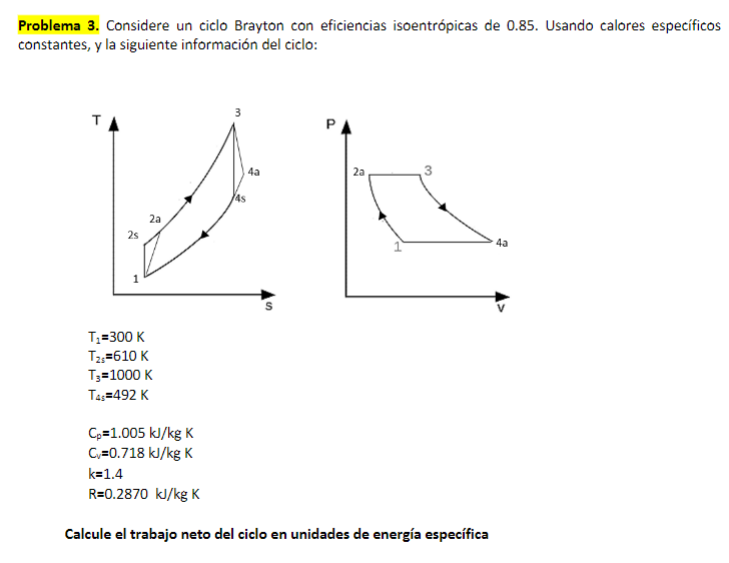

Problema 3. Considere un ciclo Brayton con eficiencias isoentrópicas de 0.85. Usando calores específicos constantes, y la siguiente información del ciclo: 4a 2a 45 2a 2s 4a T =300K T2=610 K Ty=1000 K Tas=492 K Cp=1.005 kJ/kg K Cy=0.718 kJ/kg K k=1.4 R=0.2870 kJ/kg K Calcule el trabajo neto del ciclo en unidades de energía específica
