The figure shows the graph of a raise-stop-return cam. The cited profiles are H-1, constant speed, C-2 stop, C-3 and H-4

Post by answerhappygod »

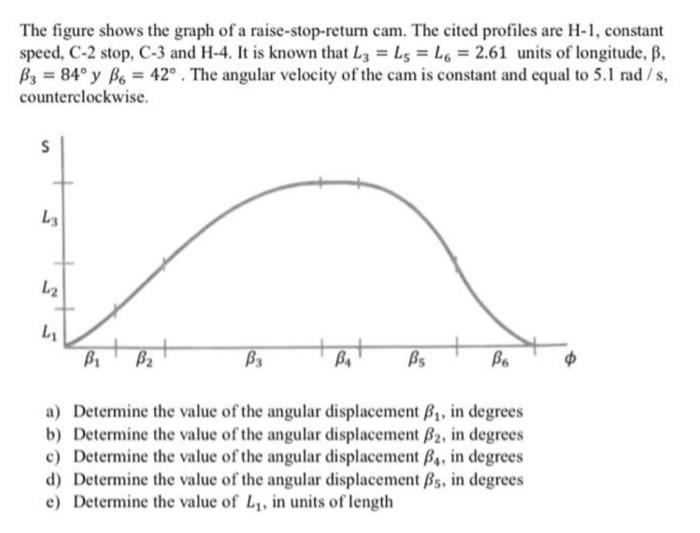

The Figure Shows The Graph Of A Raise Stop Return Cam The Cited Profiles Are H 1 Constant Speed C 2 Stop C 3 And H 4 1
The Figure Shows The Graph Of A Raise Stop Return Cam The Cited Profiles Are H 1 Constant Speed C 2 Stop C 3 And H 4 1 (34.84 KiB) Viewed 34 times
The figure shows the graph of a raise-stop-return cam. The cited profiles are H-1, constant speed, C-2 stop, C-3 and H-4. It is known that L3 = Ls = 16 = 2.61 units of longitude, B. B3 = 84º y B6 = 42°. The angular velocity of the cam is constant and equal to 5.1 rad /s, counterclockwise. S L3 L2 5 Bi B2 B: BA Bs BE a) Determine the value of the angular displacement B1, in degrees b) Determine the value of the angular displacement B2, in degrees c) Determine the value of the angular displacement Ba, in degrees d) Determine the value of the angular displacement Bs, in degrees e) Determine the value of Li, in units of length
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
