5 5 A cantilever beam is loaded as illustrated in Fig. 7.21. Determine the deflection at the free end. E = 200 GPa 3KN 4

Post by answerhappygod »

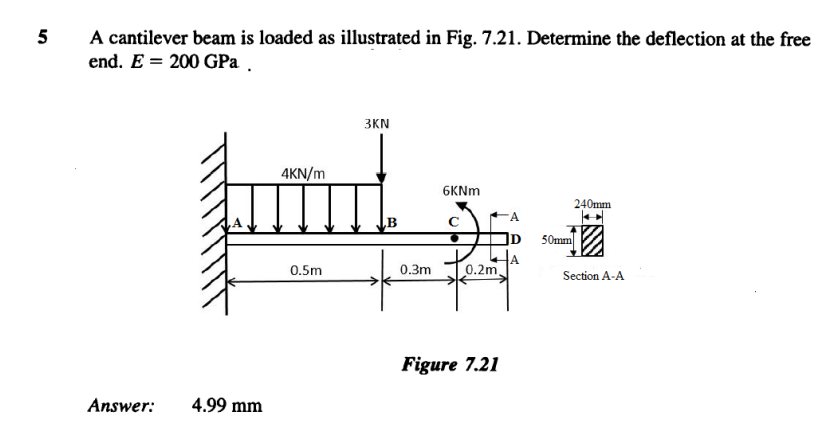

5 5 A Cantilever Beam Is Loaded As Illustrated In Fig 7 21 Determine The Deflection At The Free End E 200 Gpa 3kn 4 1
5 5 A Cantilever Beam Is Loaded As Illustrated In Fig 7 21 Determine The Deflection At The Free End E 200 Gpa 3kn 4 1 (55.69 KiB) Viewed 28 times
5 5 A cantilever beam is loaded as illustrated in Fig. 7.21. Determine the deflection at the free end. E = 200 GPa 3KN 4KN/m 6KNm 240mm 50mm 0.5m 0.3m 0.2m Section A-A Figure 7.21 Answer: 4.99 mm
