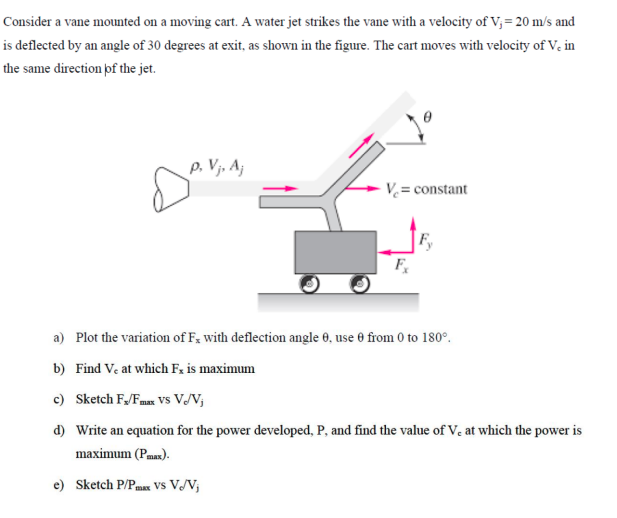

Consider a vane mounted on a moving cart. A water jet strikes the vane with a velocity of V;= 20 m/s and is deflected by an angle of 30 degrees at exit, as shown in the figure. The cart moves with velocity of Ve in the same direction pf the jet. P. V; A; Dan V = constant a) Plot the variation of F, with deflection angle 6, use 0 from 0 to 180°. b) Find Ve at which Fz is maximum c) Sketch F/Fmax vs V/V; d) Write an equation for the power developed, P, and find the value of Ve at which the power is maximum (Pmax). e) Sketch P/Pmxx vs V/V,
