Question 3 A piston-cylinder device contains a mixture of liquid water and vapour at 6 bar with 25 percent quality. The

[answerhappygod]

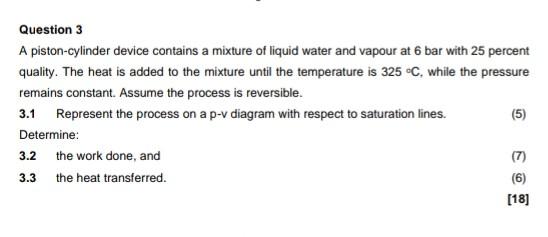

Question 3 A Piston Cylinder Device Contains A Mixture Of Liquid Water And Vapour At 6 Bar With 25 Percent Quality The 1 (16.05 KiB) Viewed 42 times

Question 3 A piston-cylinder device contains a mixture of liquid water and vapour at 6 bar with 25 percent quality. The heat is added to the mixture until the temperature is 325 °C, while the pressure remains constant. Assume the process is reversible. 3.1 Represent the process on a p-v diagram with respect to saturation lines. (5) Determine: 3.2 the work done, and (7) the heat transferred. (6) [18] 3.3
