QUESTION 14 5 The fan of a turbofan engine is tested at high speed. The flow approaches the fan tip at a welative Mach n

Post by answerhappygod »

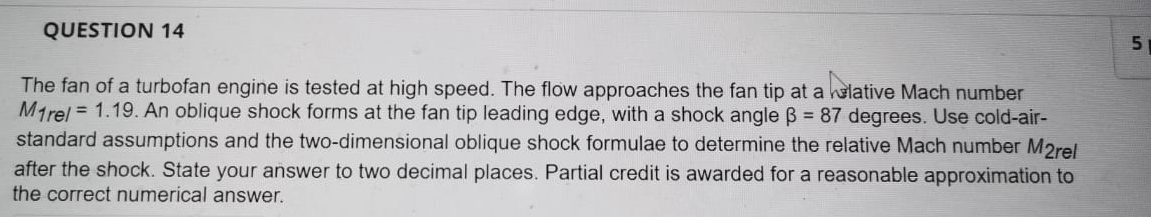

Question 14 5 The Fan Of A Turbofan Engine Is Tested At High Speed The Flow Approaches The Fan Tip At A Welative Mach N 1
Question 14 5 The Fan Of A Turbofan Engine Is Tested At High Speed The Flow Approaches The Fan Tip At A Welative Mach N 1 (241.79 KiB) Viewed 43 times
QUESTION 14 5 The fan of a turbofan engine is tested at high speed. The flow approaches the fan tip at a welative Mach number M1rel = 1.19. An oblique shock forms at the fan tip leading edge, with a shock angle ß = 87 degrees. Use cold-air- standard assumptions and the two-dimensional oblique shock formulae to determine the relative Mach number M2rel after the shock. State your answer to two decimal places. Partial credit is awarded for a reasonable approximation to the correct numerical answer.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
