[CLO-3] A converging-diverging nozzle operates at atmospheric pressure of 68.95 kPa. It has a minimum area of 0.1393 m2

Post by answerhappygod »

Clo 3 A Converging Diverging Nozzle Operates At Atmospheric Pressure Of 68 95 Kpa It Has A Minimum Area Of 0 1393 M2 1
Clo 3 A Converging Diverging Nozzle Operates At Atmospheric Pressure Of 68 95 Kpa It Has A Minimum Area Of 0 1393 M2 1 (76.42 KiB) Viewed 37 times

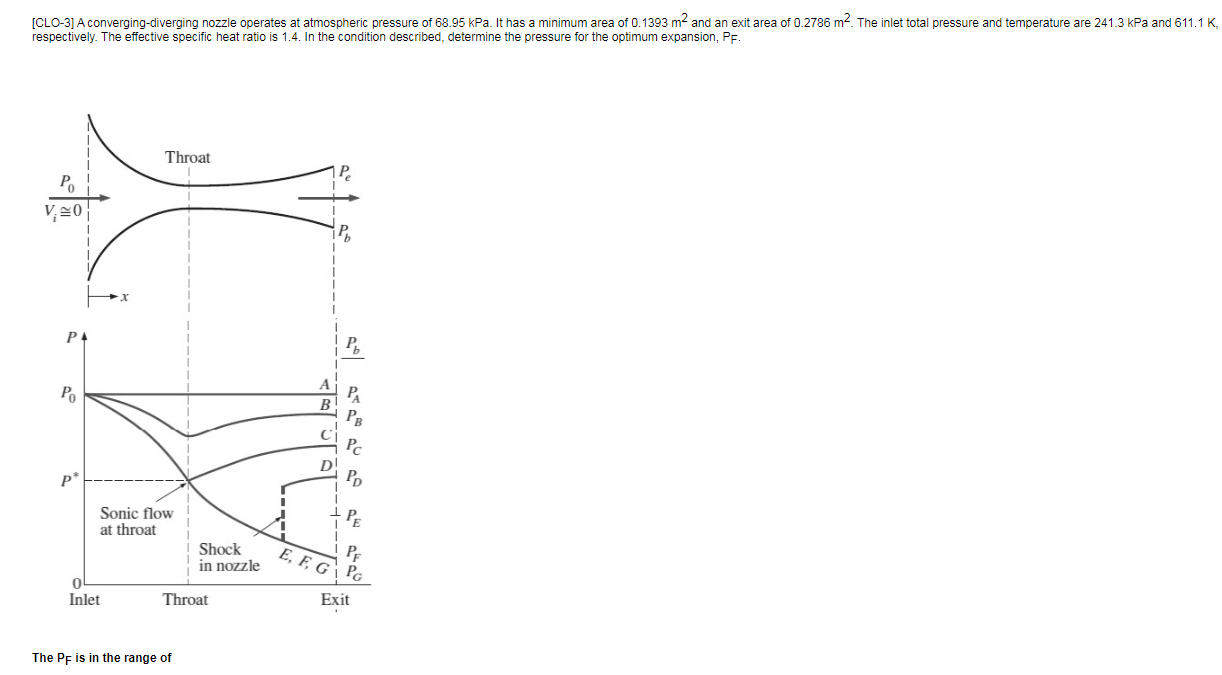

[CLO-3] A converging-diverging nozzle operates at atmospheric pressure of 68.95 kPa. It has a minimum area of 0.1393 m2 and an exit area of 0.2786 m2. The inlet total pressure and temperature are 241.3 kPa and 611.1K, respectively. The effective specific heat ratio is 1.4. In the condition described, determine the pressure for the optimum expansion, PF. Throat V. 20 PA Р. Po B PA PB Pc С P PD Sonic flow at throat PE Shock in nozzle E, F, GPG Р. 0! Inlet Throat Exit The PF is in the range of
