b) Consider steady-state conditions for one-dimensional conduction in a plane wall having a thermal conductivity k = 50

[answerhappygod]

B Consider Steady State Conditions For One Dimensional Conduction In A Plane Wall Having A Thermal Conductivity K 50 1 (22.92 KiB) Viewed 36 times

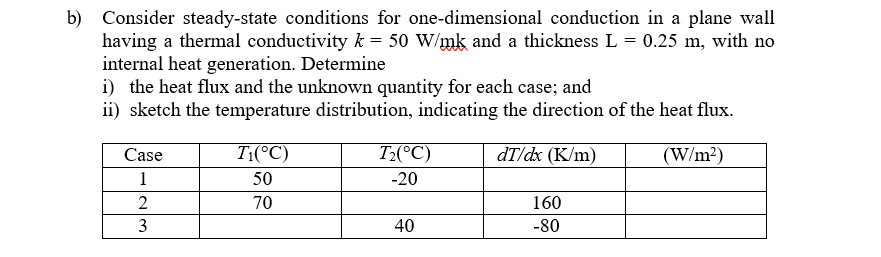

b) Consider steady-state conditions for one-dimensional conduction in a plane wall having a thermal conductivity k = 50 W/mk and a thickness L = 0.25 m, with no internal heat generation. Determine i) the heat flux and the unknown quantity for each case; and ii) sketch the temperature distribution, indicating the direction of the heat flux. dT/dx (K/m) (W/m2) Case 1 2 3 Ti(°C) 50 70 T2(°C) -20 160 -80 40
