Center punchDivdersScriberTry squrePunchingBlankingPerformingNotchingSlittingLanchingpartingShaving TrimmingRoll bendingRoll formingFoldingNibbling
Center punch
Divders
Scriber
Try squre
Punching
Blanking
Performing
Notching
Slitting
Lanching
parting
Shaving
Trimming
Roll bending
Roll forming
Folding
Nibbling

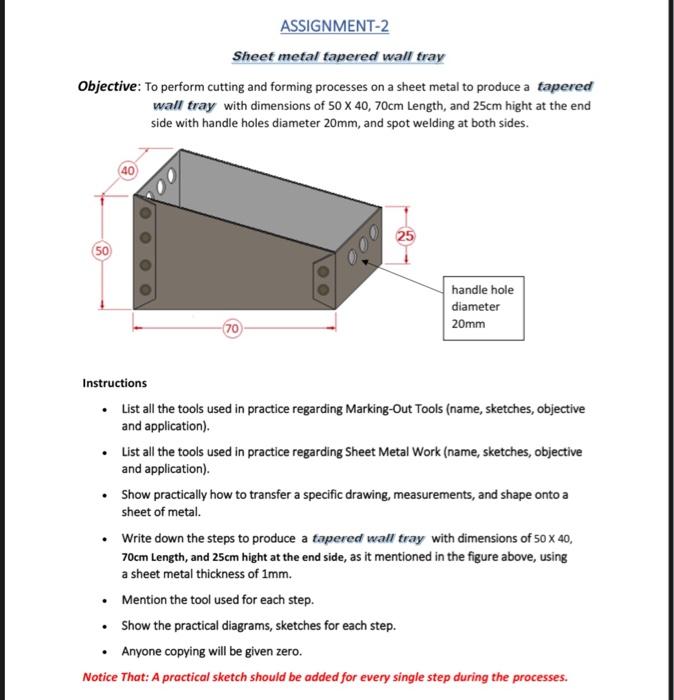

ASSIGNMENT-2 Sheet metal tapered wall tray Objective: To perform cutting and forming processes on a sheet metal to produce a tapered wall tray with dimensions of 50 X 40, 70cm Length, and 25cm hight at the end side with handle holes diameter 20mm, and spot welding at both sides. 25 002 OO handle hole diameter 20mm 70 Instructions • List all the tools used in practice regarding Marking-Out Tools (name, sketches, objective and application). List all the tools used in practice regarding Sheet Metal Work (name, sketches, objective and application). • Show practically how to transfer a specific drawing, measurements, and shape onto a sheet of metal. Write down the steps to produce a tapered wall tray with dimensions of 50 x 40, 70cm Length, and 25cm hight at the end side, as it mentioned in the figure above, using a sheet metal thickness of 1mm. • Mention the tool used for each step. • Show the practical diagrams, sketches for each step. • Anyone copying will be given zero. Notice That: A practical sketch should be added for every single step during the processes.
