Question 2. Oy Txy Ox х The figure (not drawn to scale) shows a state of stress in a xy frame of reference. We wish to c

Post by answerhappygod »

1
1 (27.6 KiB) Viewed 38 times

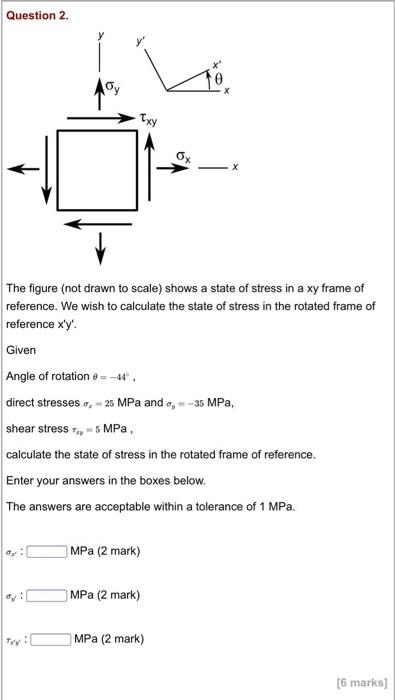

Question 2. Oy Txy Ox х The figure (not drawn to scale) shows a state of stress in a xy frame of reference. We wish to calculate the state of stress in the rotated frame of reference x'y. Given Angle of rotation or e = -4° direct stresses o, 25 MPa and .,- -35 MPa, shear stress T, - 5 MPa. calculate the state of stress in the rotated frame of reference. Enter your answers in the boxes below. The answers are acceptable within a tolerance of 1 MPa. MPa (2 mark) MPa (2 mark) Tuy MPa (2 mark) [6 marks]
