Question 3. • Txy х The figure (not drawn to scale) shows a state of stress in a xy frame of reference. Given direct str

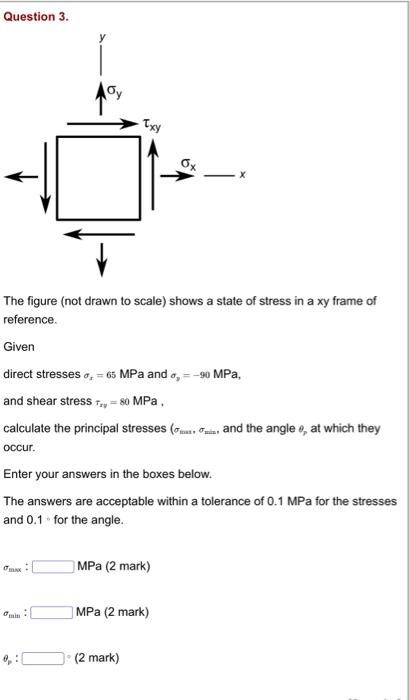

Question 3. • Txy х The figure (not drawn to scale) shows a state of stress in a xy frame of reference. Given direct stresses = 65 MPa and c, = -90 MPa, and shear stress Try = 80 MPa. calculate the principal stresses (cus, Omn, and the angles, at which they occur. Enter your answers in the boxes below. The answers are acceptable within a tolerance of 0.1 MPa for the stresses and 0.1 for the angle. MPa (2 mark) MPa (2 mark) (2 mark)
