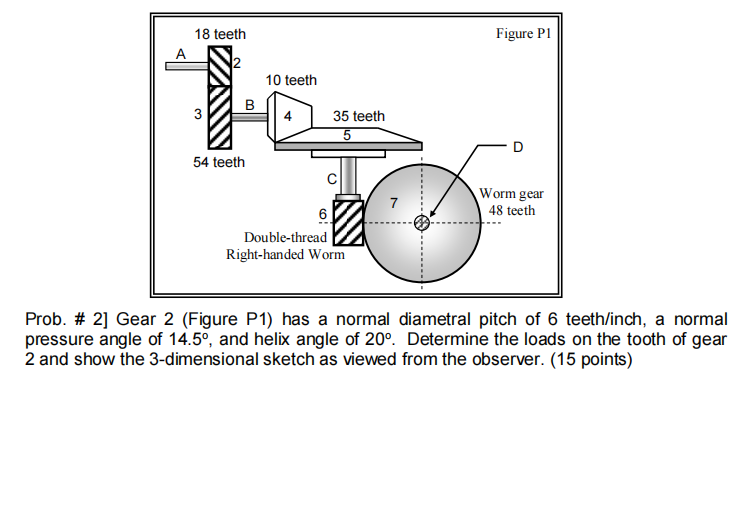

18 teeth Figure P1 10 teeth 「E B 3 35 teeth 5 D 54 teeth 7 Worm gear 48 teeth 6 Double-thread Right-handed Worm Prob. #

[answerhappygod]

18 Teeth Figure P1 10 Teeth E B 3 35 Teeth 5 D 54 Teeth 7 Worm Gear 48 Teeth 6 Double Thread Right Handed Worm Prob 1 (51.36 KiB) Viewed 31 times

18 teeth Figure P1 10 teeth 「E B 3 35 teeth 5 D 54 teeth 7 Worm gear 48 teeth 6 Double-thread Right-handed Worm Prob. # 2] Gear 2 (Figure P1) has a normal diametral pitch of 6 teeth/inch, a normal pressure angle of 14.5°, and helix angle of 20º. Determine the loads on the tooth of gear 2 and show the 3-dimensional sketch as viewed from the observer. (15 points)
