Question 1 P2 = 3450 kPa T2 = 430 °C m2 - 3 kg/s 3 Boiler 2 4 W out Qout 1 Turbine Process heater Pump Win 5 P6 = 3450 k

[answerhappygod]

Question 1 P2 3450 Kpa T2 430 C M2 3 Kg S 3 Boiler 2 4 W Out Qout 1 Turbine Process Heater Pump Win 5 P6 3450 K 1 (88.14 KiB) Viewed 31 times

Question 1 P2 3450 Kpa T2 430 C M2 3 Kg S 3 Boiler 2 4 W Out Qout 1 Turbine Process Heater Pump Win 5 P6 3450 K 2 (186.04 KiB) Viewed 31 times

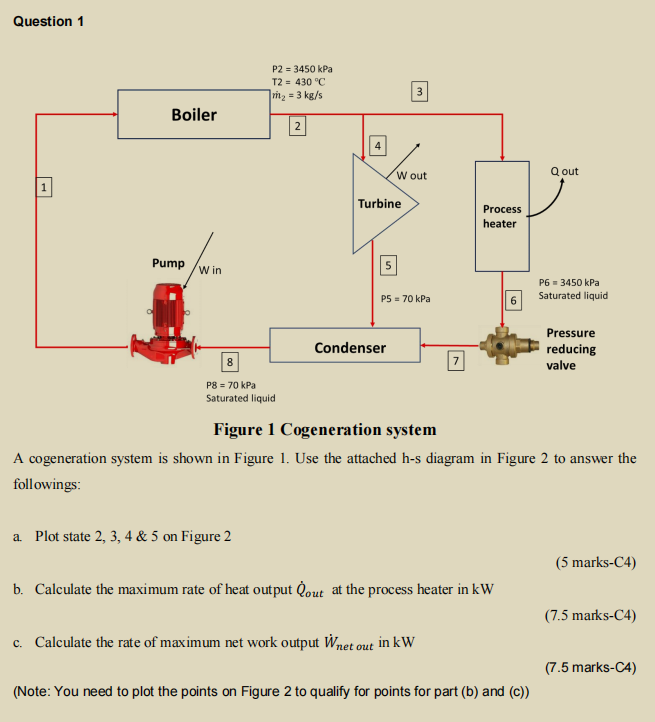

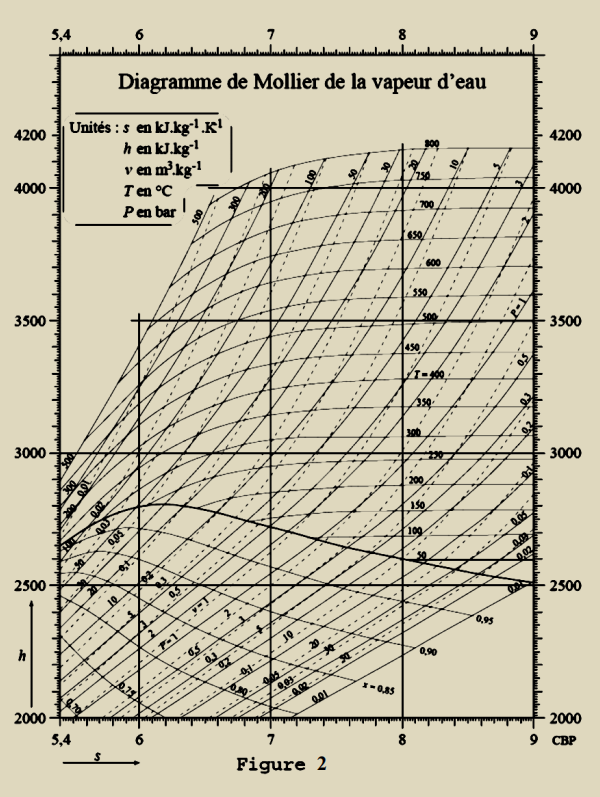

Question 1 P2 = 3450 kPa T2 = 430 °C m2 - 3 kg/s 3 Boiler 2 4 W out Qout 1 Turbine Process heater Pump Win 5 P6 = 3450 kPa Saturated liquid P5 = 70 kPa 6 Condenser Pressure reducing valve 7 8 P8 = 70 kPa Saturated liquid Figure 1 Cogeneration system A cogeneration system is shown in Figure 1. Use the attached h-s diagram in Figure 2 to answer the followings a Plot state 2, 3, 4 & 5 on Figure 2 (5 marks-C4) b. Calculate the maximum rate of heat output Gout at the process heater in kW (7.5 marks-C4) c. Calculate the rate of maximum net work output Wnet out in kW (7.5 marks-C4) (Note: You need to plot the points on Figure 2 to qualify for points for part (b) and (c))
