A steel pipe of length L=1.22m, outside diameter d2 =15.2cm, and inside diameter d1=11.4cm. is compressed by an axial fo

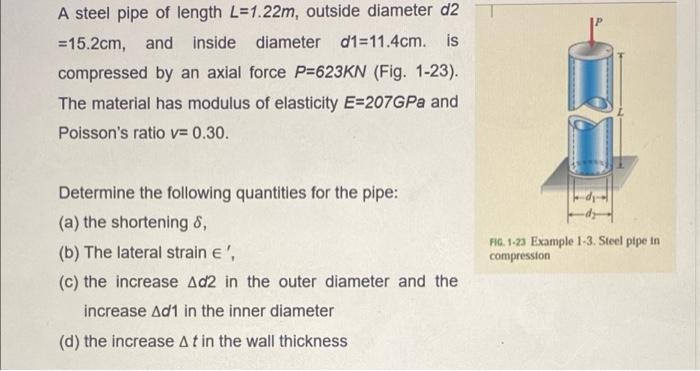

A steel pipe of length L=1.22m, outside diameter d2 =15.2cm, and inside diameter d1=11.4cm. is compressed by an axial force P=623KN (Fig. 1-23). The material has modulus of elasticity E=207GPa and Poisson's ratio v= 0.30. FIG. 1-23 Example 1-3. Steel pipe in compression Determine the following quantities for the pipe: (a) the shortening 8, (b) The lateral straine', (c) the increase Ad2 in the outer diameter and the increase Ad1 in the inner diameter (d) the increase At in the wall thickness
