L'AB 100 mm 75 mm IB- 50 mm B св 250 mm Crank CB has a constant counterclockwise angular velocity of 2 rad/s in the posi

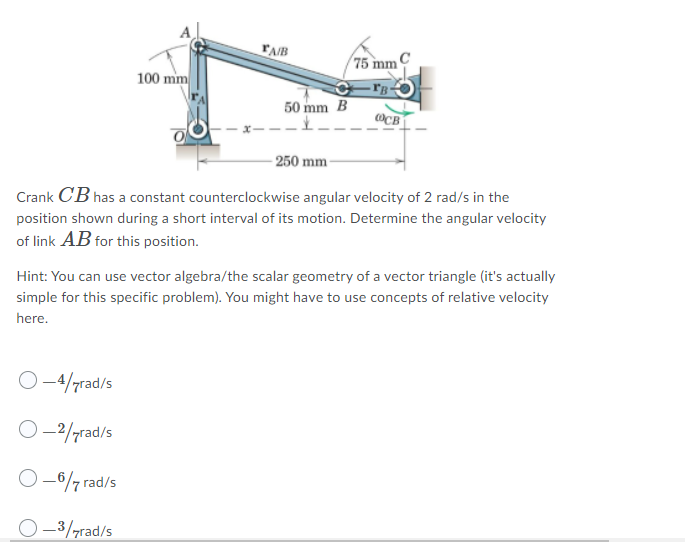

L'AB 100 mm 75 mm IB- 50 mm B св 250 mm Crank CB has a constant counterclockwise angular velocity of 2 rad/s in the position shown during a short interval of its motion. Determine the angular velocity of link AB for this position. Hint: You can use vector algebra/the scalar geometry of a vector triangle (it's actually simple for this specific problem). You might have to use concepts of relative velocity here. O-4/7rad/s 0_2/7rad/s O-6/7 rad/s 0_3/rad/S
