Write a word address program in absolute mode to profile mill the contour given below. Use CNC tool and operations sheet

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Write a word address program in absolute mode to profile mill the contour given below. Use CNC tool and operations sheet

Post by answerhappygod »

Write A Word Address Program In Absolute Mode To Profile Mill The Contour Given Below Use Cnc Tool And Operations Sheet 1
Write A Word Address Program In Absolute Mode To Profile Mill The Contour Given Below Use Cnc Tool And Operations Sheet 1 (31.34 KiB) Viewed 37 times

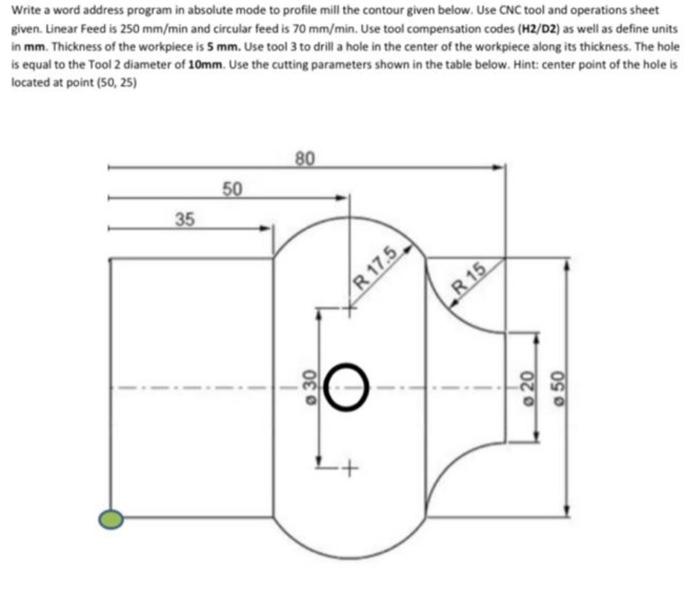

Write a word address program in absolute mode to profile mill the contour given below. Use CNC tool and operations sheet given. Linear Feed is 250 mm/min and circular feed is 70 mm/min. Use tool compensation codes (H2/D2) as well as define units in mm. Thickness of the workpiece is 5 mm. Use tool 3 to drill a hole in the center of the workpiece along its thickness. The hole is equal to the Tool 2 diameter of 10mm. Use the cutting parameters shown in the table below. Hint: center point of the hole is located at point (50, 25) 80 50 35 . R 17.5 R 15 30 O 020 050
