A road sign (0.6 m wide and 0.2 m high) is mounted on a cylindrical pole of diameter, D-80 mm and height, H-4 mas shown

Post by answerhappygod »

A Road Sign 0 6 M Wide And 0 2 M High Is Mounted On A Cylindrical Pole Of Diameter D 80 Mm And Height H 4 Mas Shown 1
A Road Sign 0 6 M Wide And 0 2 M High Is Mounted On A Cylindrical Pole Of Diameter D 80 Mm And Height H 4 Mas Shown 1 (22.47 KiB) Viewed 53 times

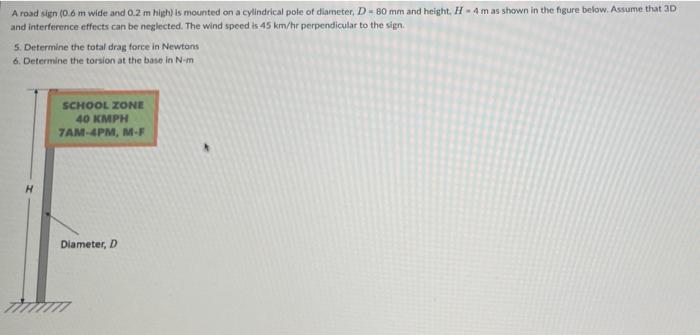

A road sign (0.6 m wide and 0.2 m high) is mounted on a cylindrical pole of diameter, D-80 mm and height, H-4 mas shown in the figure below. Assume that 3D and interference effects can be neglected. The wind speed is 45 km/hr perpendicular to the sign 5. Determine the total drag force in Newtons 6. Determine the torsion at the base in N.m SCHOOL ZONE 40 KMPH 7AM-4PM, M-F H Diameter, D 17777
