5-72 Steady-state temperatures (K) at three nodal points of a two-dimensional system with a thermal conductivity of k= 2

[answerhappygod]

5 72 Steady State Temperatures K At Three Nodal Points Of A Two Dimensional System With A Thermal Conductivity Of K 2 1 (26.52 KiB) Viewed 40 times

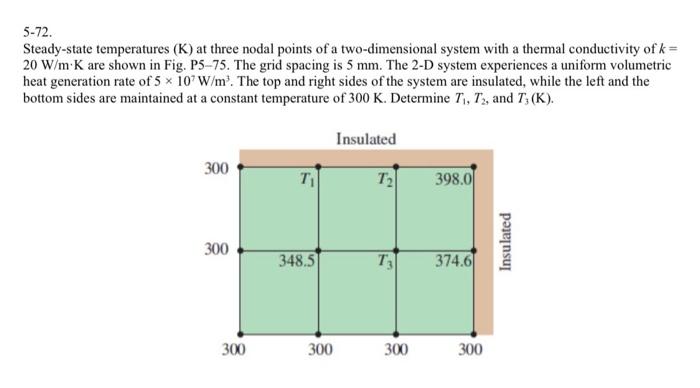

5-72 Steady-state temperatures (K) at three nodal points of a two-dimensional system with a thermal conductivity of k= 20 W/m K are shown in Fig. P5–75. The grid spacing is 5 mm. The 2-D system experiences a uniform volumetric heat generation rate of 5 x 10 W/m'. The top and right sides of the system are insulated, while the left and the bottom sides are maintained at a constant temperature of 300 K. Determine T1, T2, and T;(K). Insulated 300 Ti T2 398.01 300 Insulated 348.5 та 374.61 300 300 300 300
