QUESTION 1 Water is flowing through a pipe of changing diameter 2 liters of water is collected in 28 seconds 30 points P

[answerhappygod]

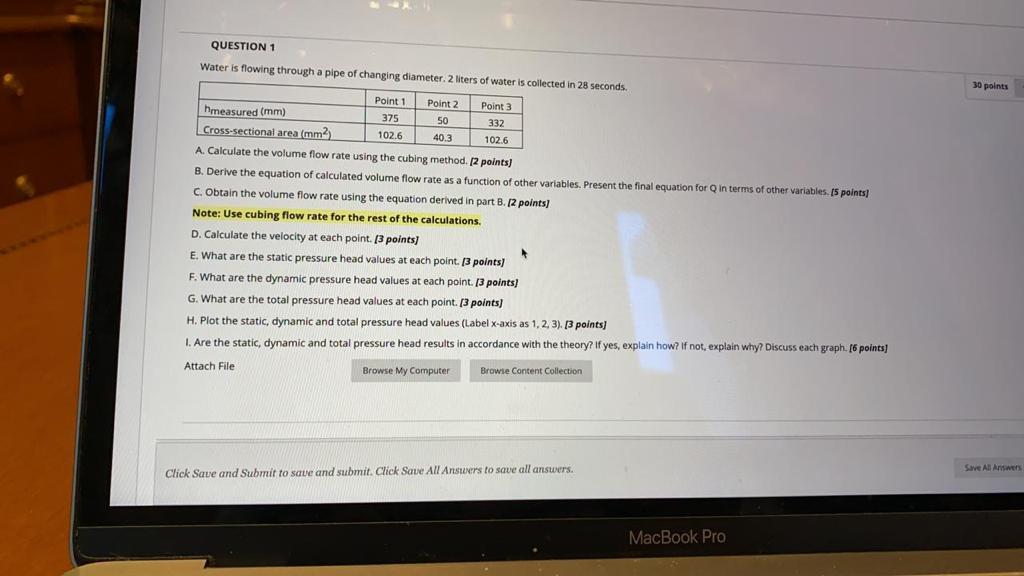

Question 1 Water Is Flowing Through A Pipe Of Changing Diameter 2 Liters Of Water Is Collected In 28 Seconds 30 Points P 1 (62.13 KiB) Viewed 51 times

QUESTION 1 Water is flowing through a pipe of changing diameter 2 liters of water is collected in 28 seconds 30 points Point 1 Point 2 Point 3 hmeasured (mm) 375 50 332 Cross-sectional area (mm2 102.6 40.3 1026 A. Calculate the volume flow rate using the cubing method. 12 points) B. Derive the equation of calculated volume flow rate as a function of other variables. Present the final equation for Q in terms of other variables. Is points) C. Obtain the volume flow rate using the equation derived in part B. 12 points) Note: Use cubing flow rate for the rest of the calculations. D. Calculate the velocity at each point. [3 points) E. What are the static pressure head values at each point. 13 points) F. What are the dynamic pressure head values at each point. [3 points) G. What are the total pressure head values at each point. [3 points) H. Plot the static, dynamic and total pressure head values (Label x-axis as 1, 2, 3). 13 points) 1. Are the static, dynamic and total pressure head results in accordance with the theory? If yes, explain how? If not, explain why? Discuss each graph. [6 points) Attach File Browse My Computer Browse Content Collection Alam Click Save and Submit to save and submit. Click Save All Answers to save all answers. MacBook Pro
