Q6. Consider the steady heat conduction in a 0.3-m thick plane wall of constant thermal conductivity and without heat ge

[answerhappygod]

Q6 Consider The Steady Heat Conduction In A 0 3 M Thick Plane Wall Of Constant Thermal Conductivity And Without Heat Ge 1 (25.2 KiB) Viewed 47 times

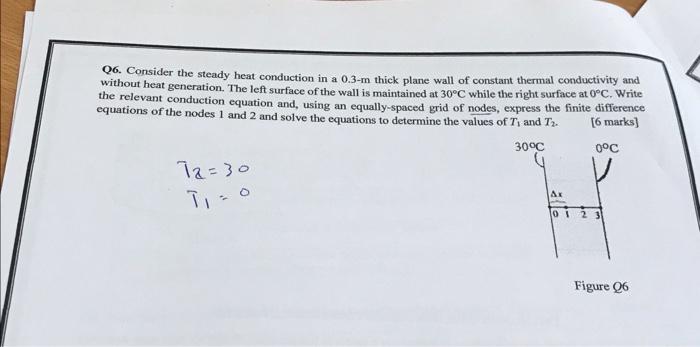

Q6. Consider the steady heat conduction in a 0.3-m thick plane wall of constant thermal conductivity and without heat generation. The left surface of the wall is maintained at 30°C while the right surface at 0°C. Write the relevant conduction equation and, using an equally-spaced grid of nodes, express the finite difference equations of the nodes 1 and 2 and solve the equations to determine the values of T, and Tz. [6 marks) 30°C 0°C Ta=30 Ti-0 01231 Figure Q6
