= From the circuit in the picture, use Fixed-point Iterative Method to find the DC bias current of the transistor IC, se
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= From the circuit in the picture, use Fixed-point Iterative Method to find the DC bias current of the transistor IC, se

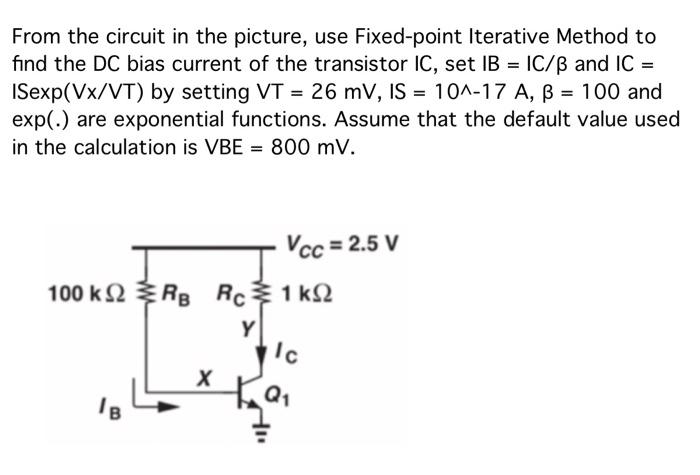

= From the circuit in the picture, use Fixed-point Iterative Method to find the DC bias current of the transistor IC, set IB = IC/B and IC = ISexp(Vx/VT) by setting VT = 26 mV, IS = 10^-17 A, B = 100 and exp(.) are exponential functions. Assume that the default value used in the calculation is VBE = 800 mV. = = Vcc = 2.5 V 100k 22 RB RC1k12 Y Тc х tai Тв
