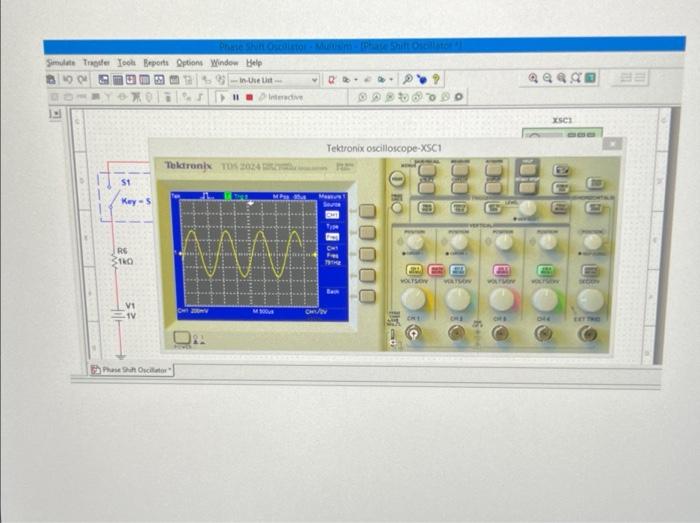

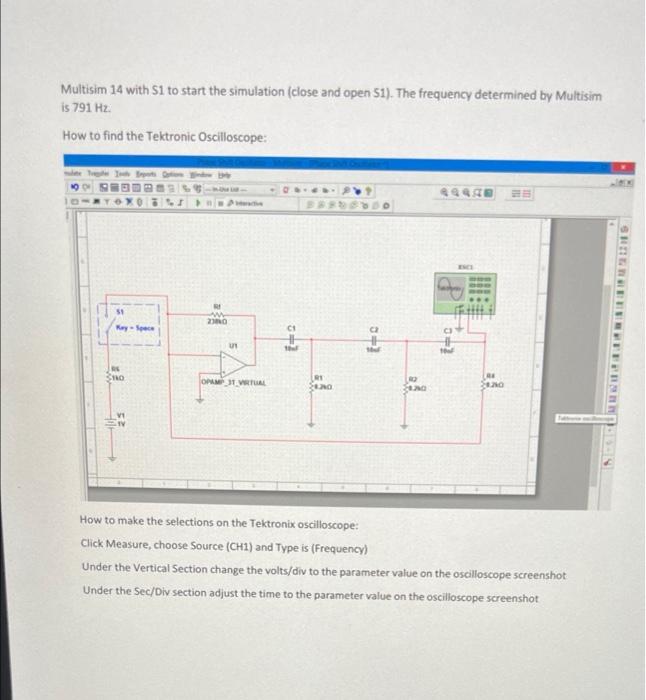

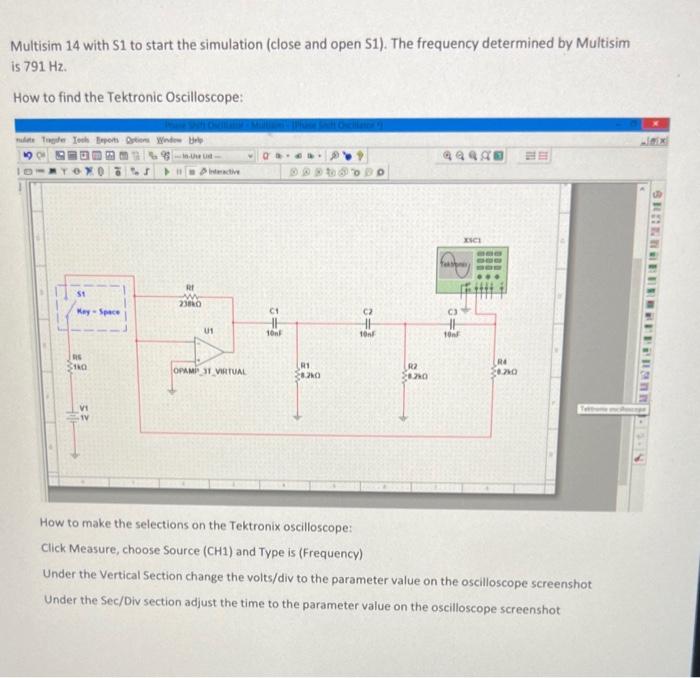

Multisim 14 with S1 to start the simulation (close and open 51). The frequency determined by Multisim is 791 Hz. How to find the Tektronic Oscilloscope: multe Toge To Beports Bele Heractive BHI ICE RE 2300 May Space CH C2 = 0-3 U1 1on 三= RS S1 OPAMT VIRTUAL RU 82 R2 SONO RU om ST) VE . 1V How to make the selections on the Tektronix oscilloscope: Click Measure, choose Source (CHI) and Type is (Frequency) Under the Vertical Section change the volts/div to the parameter value on the oscilloscope screenshot Under the Sec/Div section adjust the time to the parameter value on the oscilloscope screenshot
