Step 1 Establish The Space State Representation Of The Following Circuit C Vert 0002 6 If T N V2 Inced T Iro T Er2 1 (79.36 KiB) Viewed 38 times
can you do step 3 and step 4 please

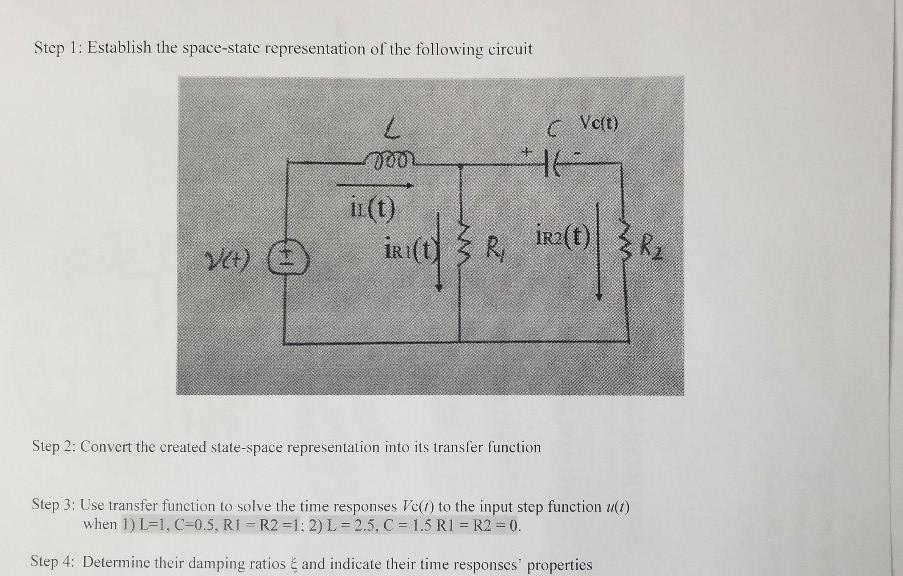

Step 1: Establish the space-state representation of the following circuit C Vert) 0002 6 if(t) N V2) inced t iro(t)| ER2 RE Step 2: Convert the created state-space representation into its transfer function Step 3: Use transfer function to solve the time responses Vect to the input step function (1) when 1) L=1, C=0.5, R1 + R2 =1:2) L = 2.5, C = 1.5 R1 = R2 = 0. Step 4: Determine their damping ratios E and indicate their time responses' properties
