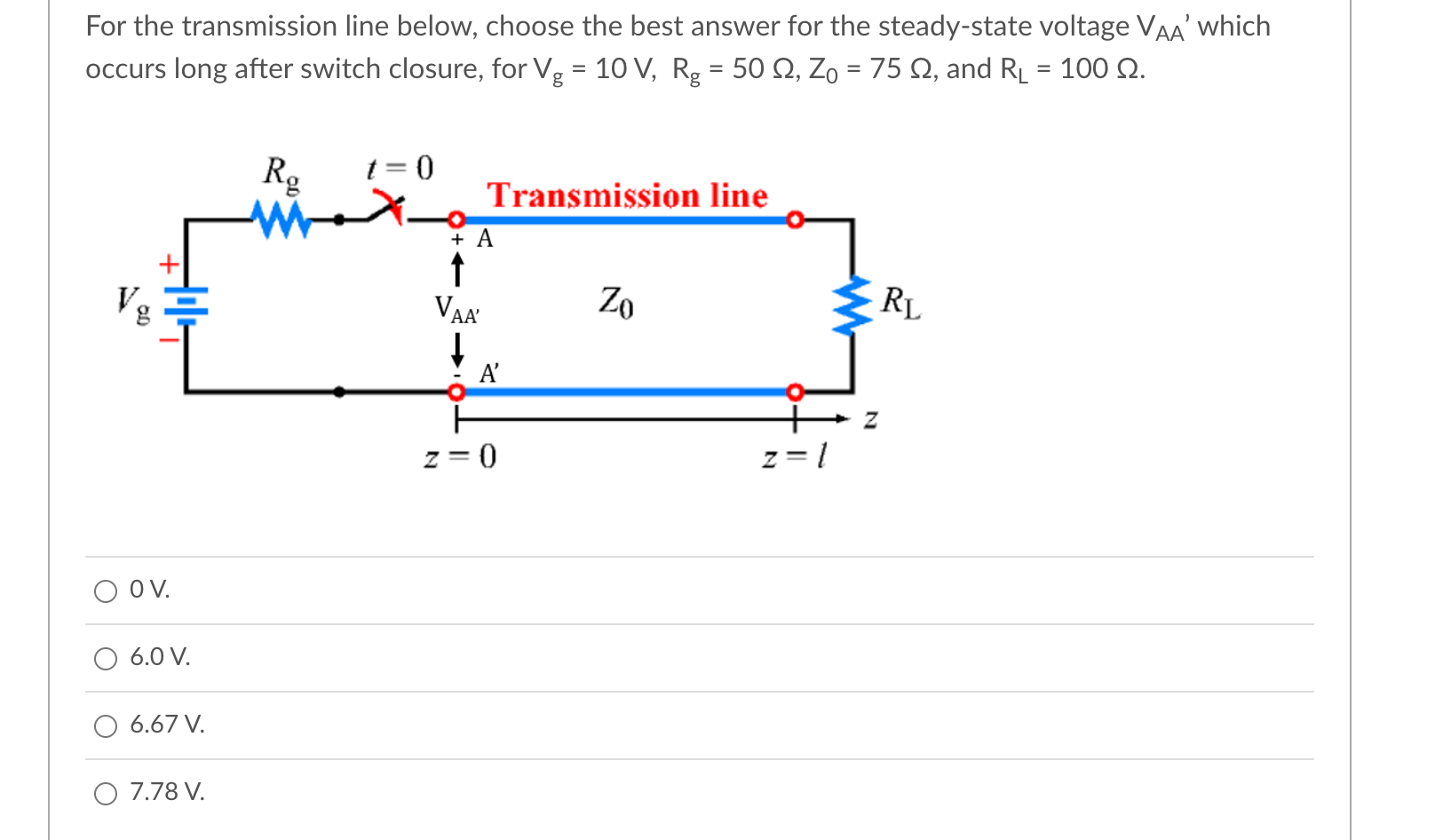

For the transmission line below, choose the best answer for the steady-state voltage Vaa' which occurs long after switch closure, for Vg = 10 V, Rg = 50 12, Zo = 75 12, and R_ = 100 12. = = R. t=0 Transmission line + A 1 Zo 1 A' -- VAA RI N z=0 z=1 OV. 6.0 V. 6.67 V. O 7.78 V.
