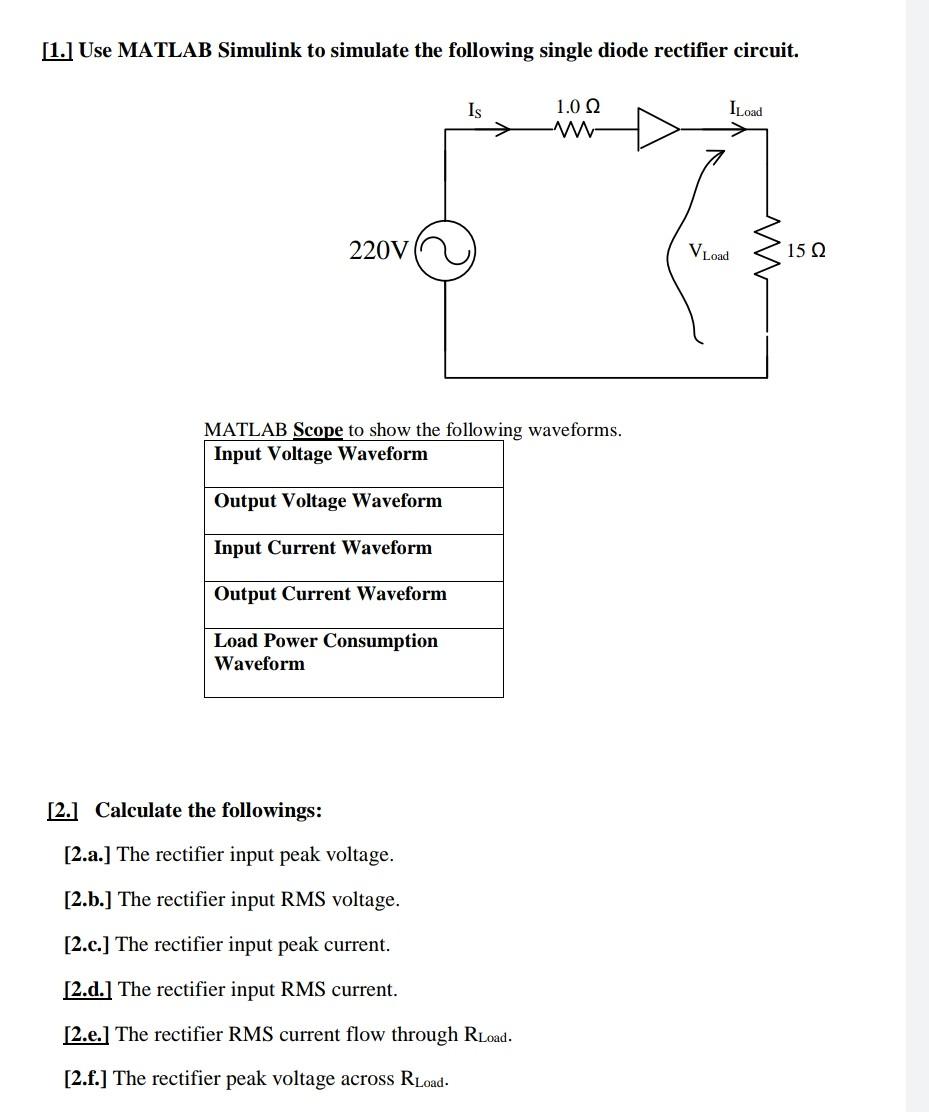

[1.] Use MATLAB Simulink to simulate the following single diode rectifier circuit. Is 1.0 Ω ILoad 220V Vload 15 Ω MATLAB

[answerhappygod]

1 (73.63 KiB) Viewed 35 times

[1.] Use MATLAB Simulink to simulate the following single diode rectifier circuit. Is 1.0 Ω ILoad 220V Vload 15 Ω MATLAB Scope to show the following waveforms. Input Voltage Waveform Output Voltage Waveform Input Current Waveform Output Current Waveform Load Power Consumption Waveform [2.1 Calculate the followings: [2.a.] The rectifier input peak voltage. [2.b.] The rectifier input RMS voltage. [2.c.] The rectifier input peak current. [2.d.] The rectifier input RMS current. [2.e.] The rectifier RMS current flow through RLoad. [2.f.] The rectifier peak voltage across RLoad-
