Determine the Q waveform relative to the clock if the signals shown in Fig. Q11 are applied to the inputs of the J-K fli

Post by answerhappygod »

Determine The Q Waveform Relative To The Clock If The Signals Shown In Fig Q11 Are Applied To The Inputs Of The J K Fli 1
Determine The Q Waveform Relative To The Clock If The Signals Shown In Fig Q11 Are Applied To The Inputs Of The J K Fli 1 (125.41 KiB) Viewed 33 times

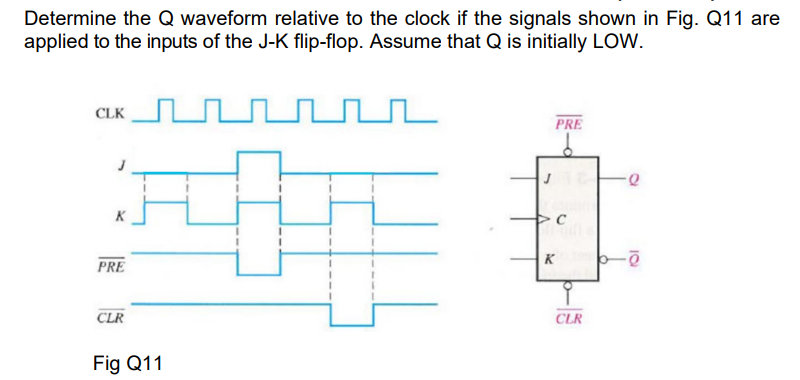

Determine the Q waveform relative to the clock if the signals shown in Fig. Q11 are applied to the inputs of the J-K flip-flop. Assume that Q is initially LOW. CLK UUUUUL PRE J I K - PRE CLR CLR Fig Q11
