The waveforms in FigQ10 are applied to the 4-bit parity logic. Determine the output waveformin proper relation to the in

Post by answerhappygod »

The Waveforms In Figq10 Are Applied To The 4 Bit Parity Logic Determine The Output Waveformin Proper Relation To The In 1
The Waveforms In Figq10 Are Applied To The 4 Bit Parity Logic Determine The Output Waveformin Proper Relation To The In 1 (90.63 KiB) Viewed 39 times

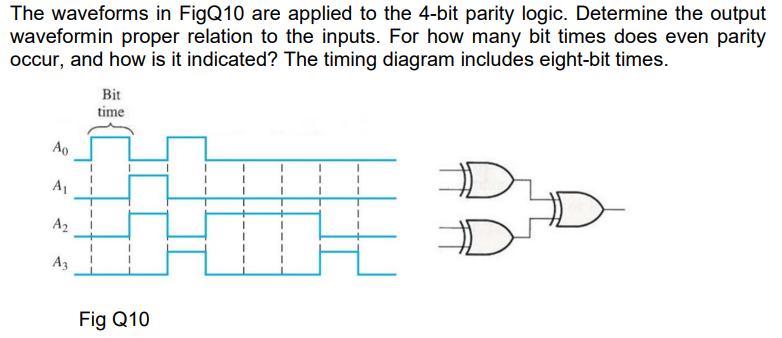

The waveforms in FigQ10 are applied to the 4-bit parity logic. Determine the output waveformin proper relation to the inputs. For how many bit times does even parity occur, and how is it indicated? The timing diagram includes eight-bit times. Bit time Ао --- A 1 Do A2 Аз Fig Q10
