Problem 2. Consider a signal input of e(t) = [000110010101] to be fed into a one input memory element. Suppose the clock

[answerhappygod]

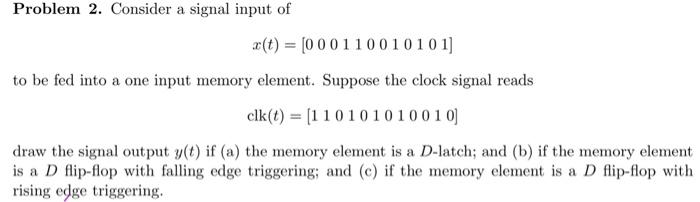

Problem 2 Consider A Signal Input Of E T 000110010101 To Be Fed Into A One Input Memory Element Suppose The Clock 1 (19.78 KiB) Viewed 40 times

Problem 2. Consider a signal input of e(t) = [000110010101] to be fed into a one input memory element. Suppose the clock signal reads clk(t) = [110101010010 draw the signal output y(t) if (a) the memory element is a D-latch; and (b) if the memory element is a D flip-flop with falling edge triggering; and (c) if the memory element is a D flip-flop with rising edge triggering,
