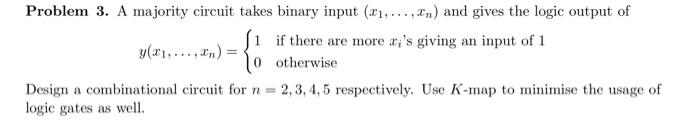

Problem 3. A majority circuit takes binary input (21, ... ,In) and gives the logic output of ſi if there are more ai's giving an input of 1 y( 21..., ) = 10 otherwise Design a combinational circuit for n = 2,3,4,5 respectively. Use K-map to minimise the usage of logic gates as well.
