Class: BEE-2B Course Code: EEE121 Marks: 12 1) In a 5-band resistor, the 4th color band represents A 2) Labelnet in LTSP

Post by answerhappygod »

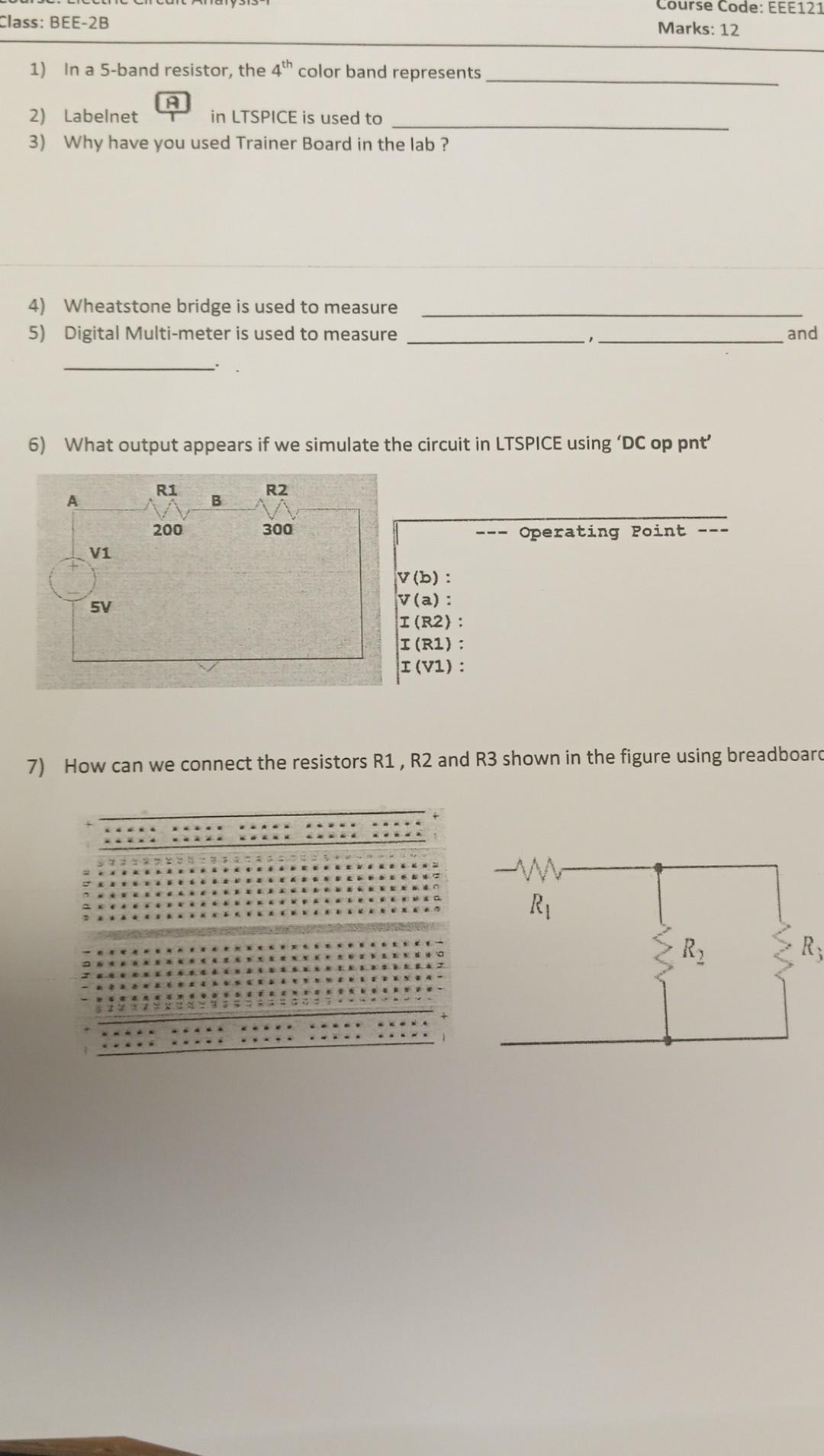

Class Bee 2b Course Code Eee121 Marks 12 1 In A 5 Band Resistor The 4th Color Band Represents A 2 Labelnet In Ltsp 1
Class Bee 2b Course Code Eee121 Marks 12 1 In A 5 Band Resistor The 4th Color Band Represents A 2 Labelnet In Ltsp 1 (124.35 KiB) Viewed 45 times
Class: BEE-2B Course Code: EEE121 Marks: 12 1) In a 5-band resistor, the 4th color band represents A 2) Labelnet in LTSPICE is used to 3) Why have you used Trainer Board in the lab? 4) Wheatstone bridge is used to measure 5) Digital Multi-meter is used to measure and 6) What output appears if we simulate the circuit in LTSPICE using 'DC op pnt' R1 R2 А B 200 300 Operating Point 11 5V V(b): v(a): I (R2): I (R1); I (V1): 7) How can we connect the resistors R1, R2 and R3 shown in the figure using breadboard POGO RO R R UND
