C. Answer the following questions for the circuit below if Ep = 103.9V245°: a. What are the values of the phase voltages

[answerhappygod]

C Answer The Following Questions For The Circuit Below If Ep 103 9v245 A What Are The Values Of The Phase Voltages 1 (306.51 KiB) Viewed 41 times

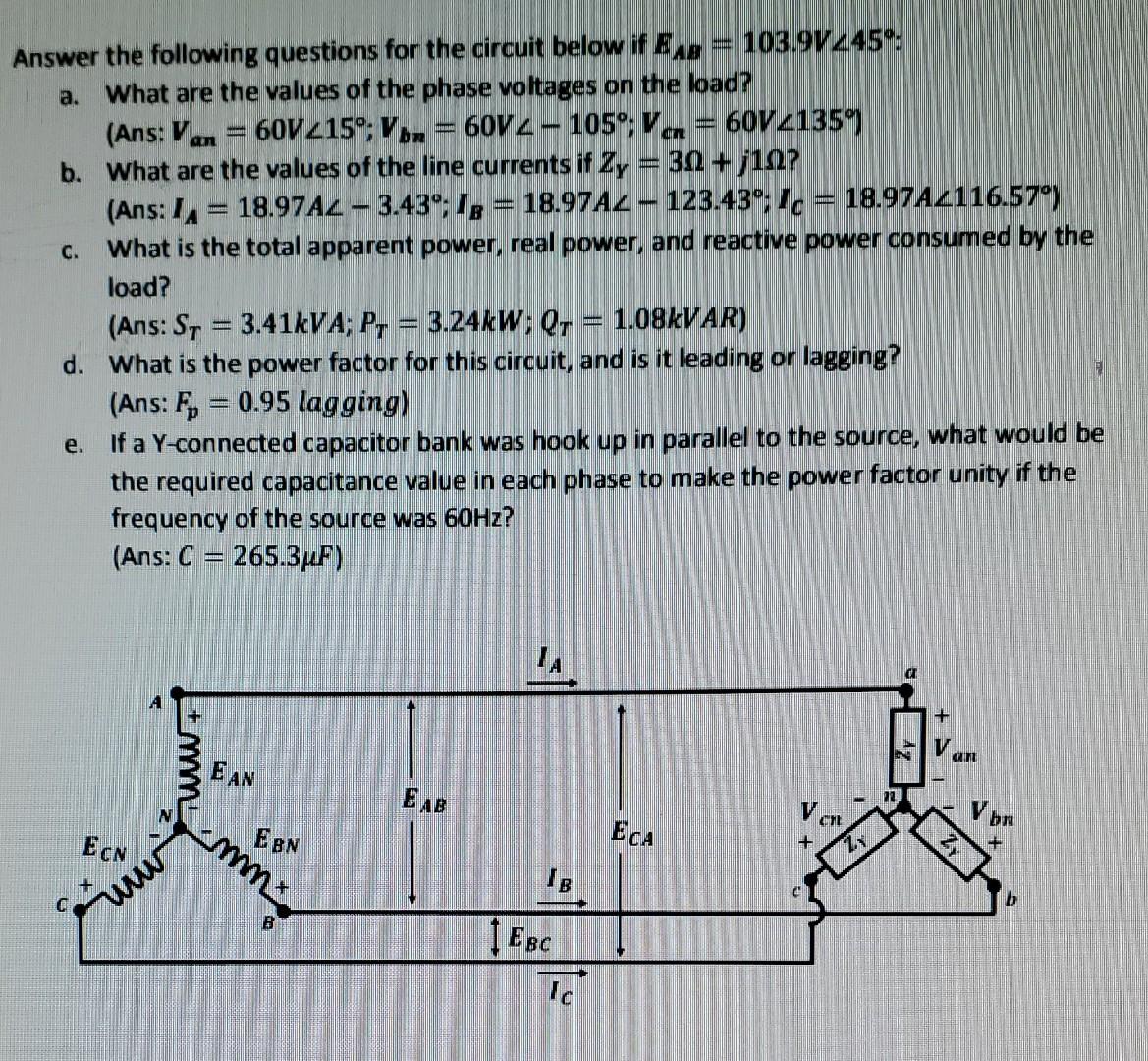

C. Answer the following questions for the circuit below if Ep = 103.9V245°: a. What are the values of the phase voltages on the load? (Ans: Van = 60V 215°, VR 60V2 – 105°; Van = 60V 2135° b. What are the values of the line currents if 2y = 30 + |12? (Ans: 1A = 18.97A2- 3.43°; 18 = 18.97A2- 123.43º;? 18.97A2116.57°) What is the total apparent power, real power, and reactive power consumed by the load? (Ans: Sy = 3.41kVA; P, 3.24kW; Q2 = 1.08kVAR) d. What is the power factor for this circuit, and is it leading or lagging? (Ans: Fp = 0.95 lagging) If a Y-connected capacitor bank was hook up in parallel to the source, what would be the required capacitance value in each phase to make the power factor unity if the frequency of the source was 60Hz? (Ans: C = 265.3uF) e. CIK mm EAN EAB 22 V bn ch mm EBN ECN ECA + 2x Тв b www EBC Ic
