a. O. 2. For Answer the following questions about the circuit below: What is the turns ratio of the transformer (a)? (An

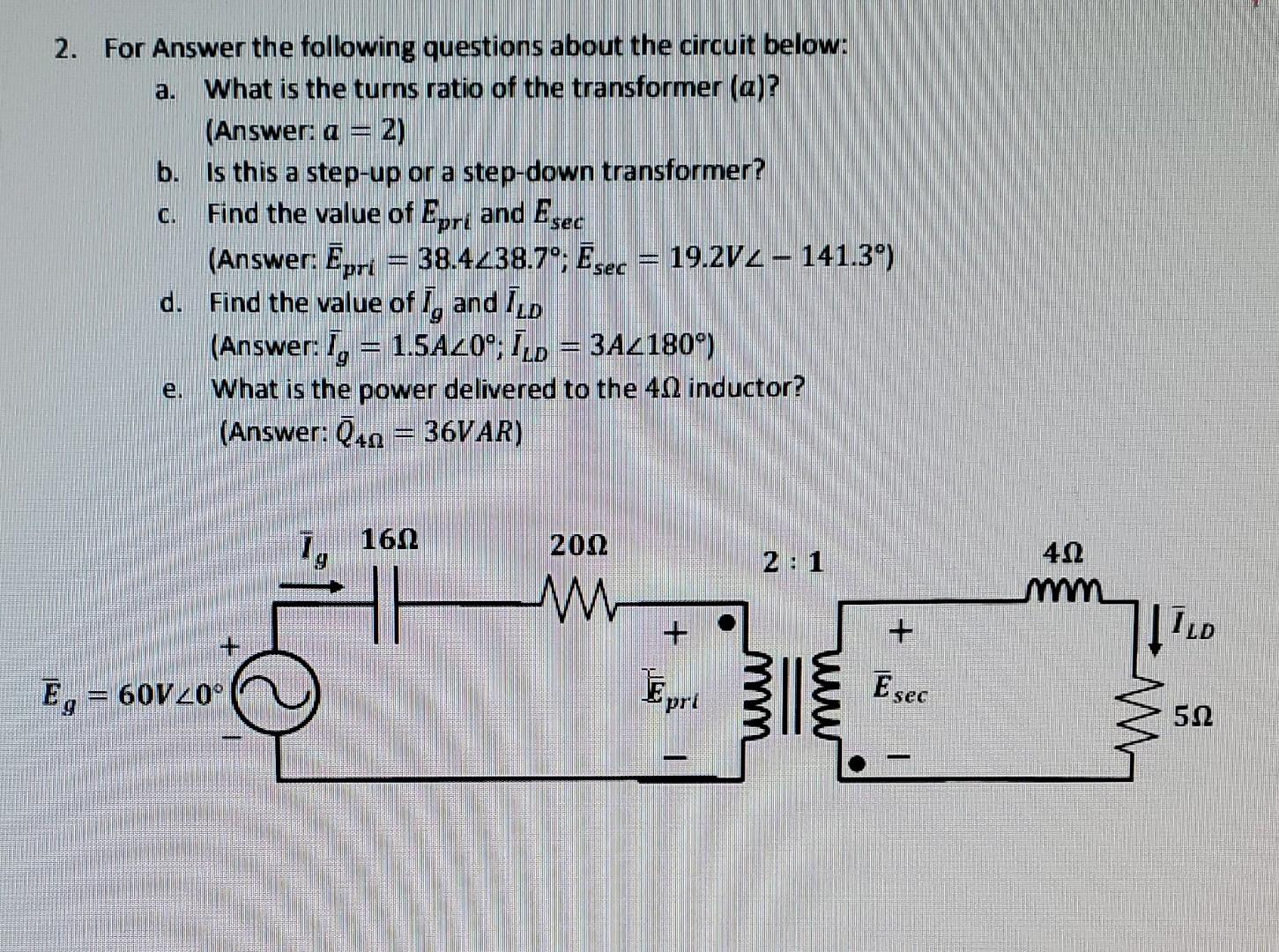

a. O. 2. For Answer the following questions about the circuit below: What is the turns ratio of the transformer (a)? (Answer: a =2) b. Is this a step-up or a step-down transformer? Find the value of Epri and Esec (Answer: Epri = 38.4238.7°; Ēsec = 19.2V2 - 141.39) d. Find the value of , and īLD (Answer: Tg = 1.5A20°; [zd = 3A2180°) What is the power delivered to the 42 inductor? (Answer: 040 = 36VAR) 1622 2012 2:1 412 M + | ILD Eg = 60V 20° Epri www Esec mm 512
