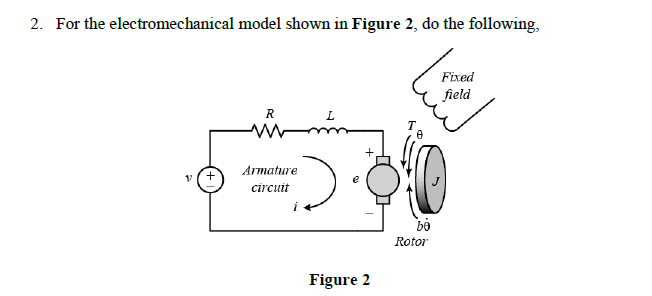

2. For the electromechanical model shown in Figure 2, do the following, Fixed field R L To v+ Armature circuit i bo Roto

[answerhappygod]

2 For The Electromechanical Model Shown In Figure 2 Do The Following Fixed Field R L To V Armature Circuit I Bo Roto 1 (18.45 KiB) Viewed 33 times

i. Find the transfer function that relates θ and v.
ii. Find the state space equations of the system.
