a (7 Points) Calculate Voc and loc flowing through R=10kresistor connected to single phase half wave rectifier. Also cal

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

a (7 Points) Calculate Voc and loc flowing through R=10kresistor connected to single phase half wave rectifier. Also cal

Post by answerhappygod »

A 7 Points Calculate Voc And Loc Flowing Through R 10kresistor Connected To Single Phase Half Wave Rectifier Also Cal 1
A 7 Points Calculate Voc And Loc Flowing Through R 10kresistor Connected To Single Phase Half Wave Rectifier Also Cal 1 (33.16 KiB) Viewed 35 times

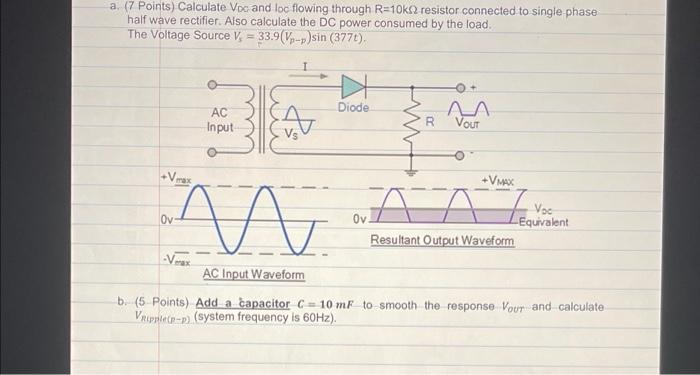

a (7 Points) Calculate Voc and loc flowing through R=10kresistor connected to single phase half wave rectifier. Also calculate the DC power consumed by the load. The Voltage Source V, = 33.9(-p)sin (377). 1 Diode AA AC Input R VOUT +Vmax +VMAX Ov АЛ ou na A Voo Ov -Equivalent Resultant Output Waveform Vmax AC Input Waveform b. (5 Points) Add a capacitor C - 10 mF to smooth the response Vour and calculate Veippie-) (system frequency is 60Hz)
