I'd like some assistance on how to make these tables and make a
k-map for them. How do you state the transition table for the
counter and then make k-maps for each flip-flop input equation.
Then calculate the minimized sum of products for each flip-flop
input signal.
I D Like Some Assistance On How To Make These Tables And Make A K Map For Them How Do You State The Transition Table Fo 1 (57.46 KiB) Viewed 31 times

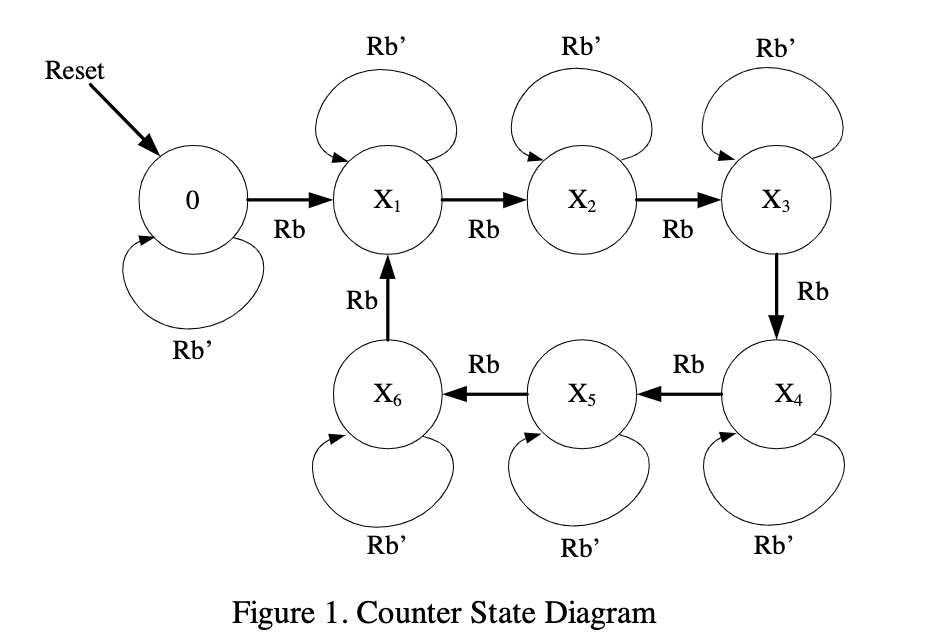

Rb' Rb' Rb' Reset 0 Xi X2 X; Rb Rb Rb Rb Rb Rb' Rb Rb Xo X5 X4 D D Rb' Rb' Rb' Figure 1. Counter State Diagram
