1. Use D flip-flops to design a 3-bit counter/pseudorandom number generator. The circuit has one control input X. When X

[answerhappygod]

1 Use D Flip Flops To Design A 3 Bit Counter Pseudorandom Number Generator The Circuit Has One Control Input X When X 1 (49.25 KiB) Viewed 40 times

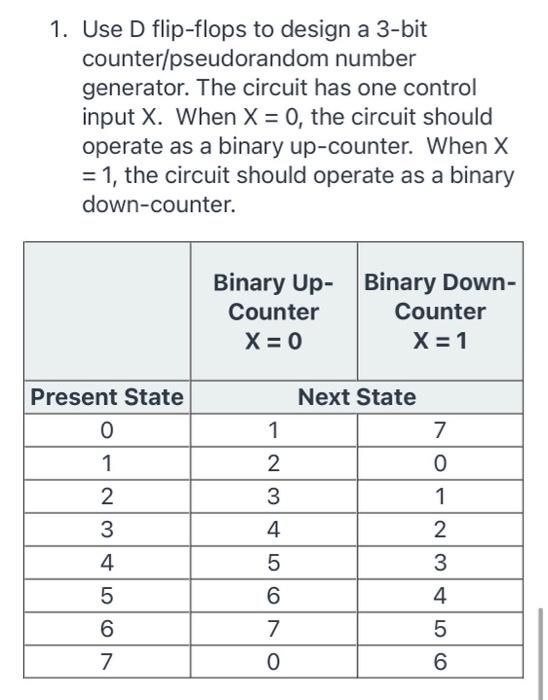

1. Use D flip-flops to design a 3-bit counter/pseudorandom number generator. The circuit has one control input X. When X = 0, the circuit should operate as a binary up-counter. When X = 1, the circuit should operate as a binary down-counter. = Binary Up- Binary Down- Counter Counter X = 0 X=1 Present State 0 Next State 1 2 7 1 0 . 3 WN 1 2 3 4 4 5 3 5 V007 6 7 6 OVO 007 4 5 6
