Q9) An information signal s(t) is fed into an AM-DSB-C modulator with carrier frequency fe = 10 kHz. The modulated signa

Post by answerhappygod »

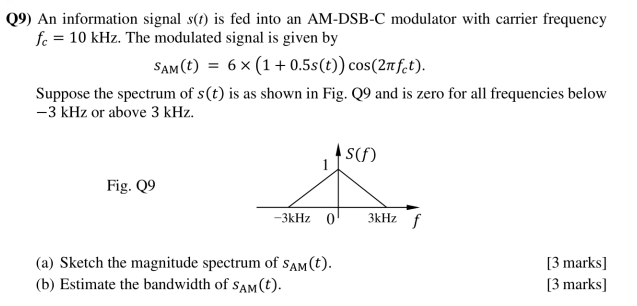

Q9 An Information Signal S T Is Fed Into An Am Dsb C Modulator With Carrier Frequency Fe 10 Khz The Modulated Signa 1
Q9 An Information Signal S T Is Fed Into An Am Dsb C Modulator With Carrier Frequency Fe 10 Khz The Modulated Signa 1 (43.15 KiB) Viewed 39 times
Q9) An information signal s(t) is fed into an AM-DSB-C modulator with carrier frequency fe = 10 kHz. The modulated signal is given by Sam(t) = 6 x (1 +0.5s(t)) cos(27tfct). Suppose the spectrum of s(t) is as shown in Fig. 29 and is zero for all frequencies below -3 kHz or above 3 kHz. Sf) Fig. 29 -3kHz 0 3kHz f (a) Sketch the magnitude spectrum of Sam(t). (b) Estimate the bandwidth of Sam(t). [3 marks] [3 marks]
