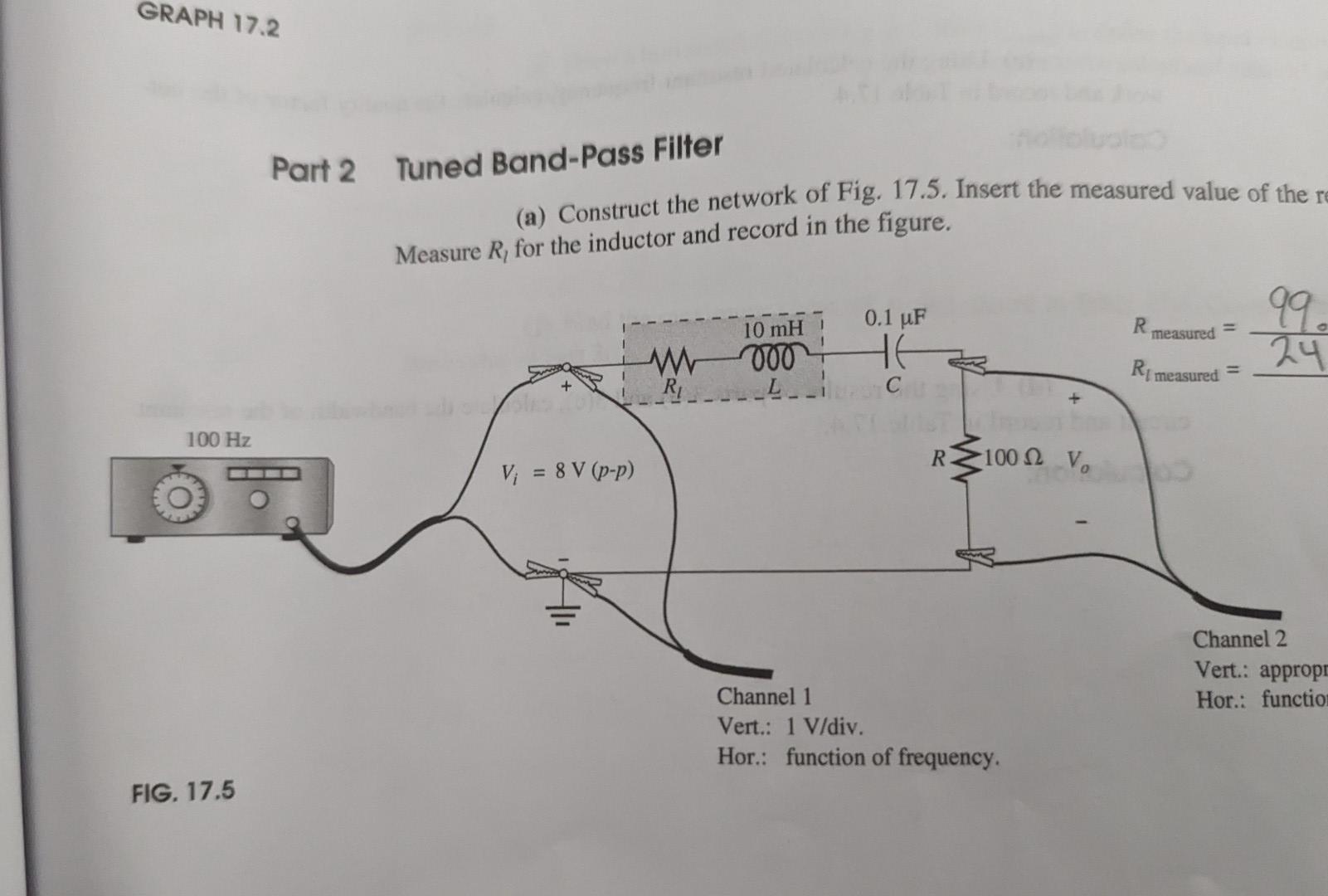

GRAPH 17.2 Part 2 Tuned Band-Pass Filter (a) Construct the network of Fig. 17.5. Insert the measured value of the re Measure R, for the inductor and record in the figure. R measured Il 0.1 uF не 10 mH W 000 L 99. 24 Ri measured + + 100 Hz R 100 Ω V. Vi = 8 V (p-p) Channel 2 Vert.: appropr Hor.: function Channel 1 Vert.: 1 V/div. Hor.: function of frequency. FIG. 17.5

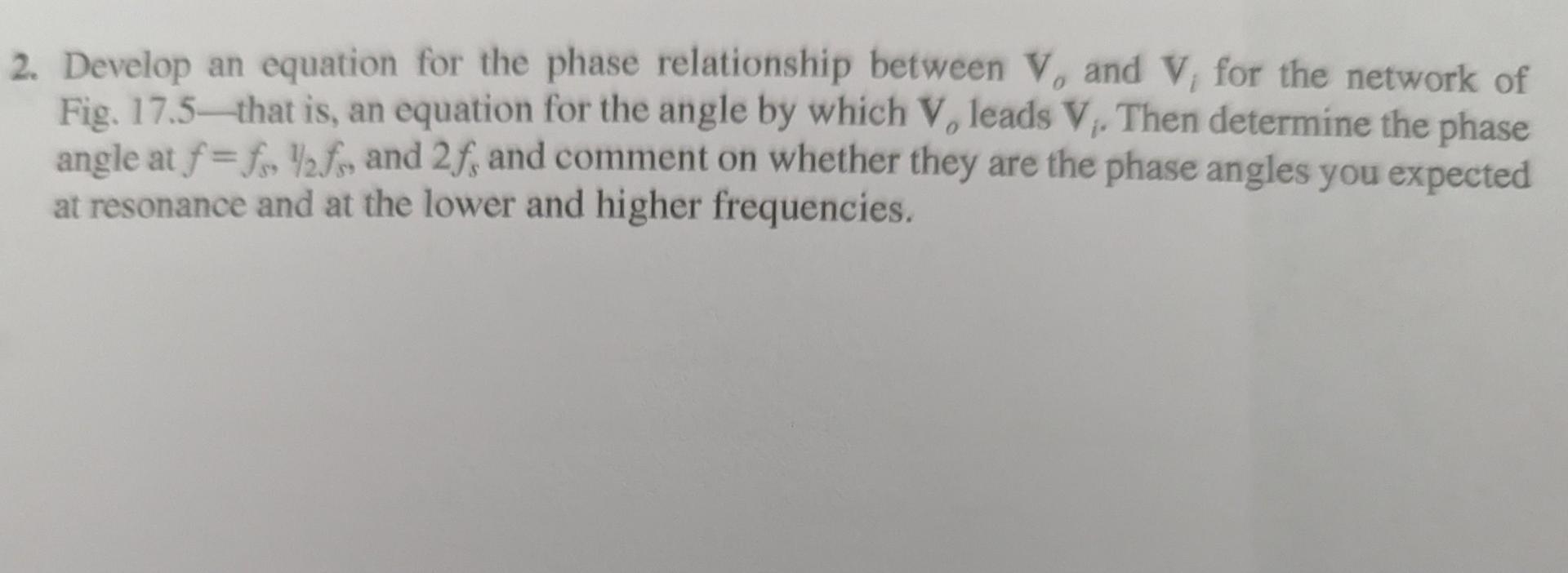

2. Develop an equation for the phase relationship between V, and V, for the network of Fig. 17.5—that is, an equation for the angle by which V, leads V;. Then determine the phase angle at f=fe, Y2f, and 2f, and comment on whether they are the phase angles you expected at resonance and at the lower and higher frequencies.
