The one-line diagram of a four-bus power system is shown below. Reactances are given in per unit on a common MVA base. T

Post by answerhappygod »

The One Line Diagram Of A Four Bus Power System Is Shown Below Reactances Are Given In Per Unit On A Common Mva Base T 1
The One Line Diagram Of A Four Bus Power System Is Shown Below Reactances Are Given In Per Unit On A Common Mva Base T 1 (15.25 KiB) Viewed 44 times

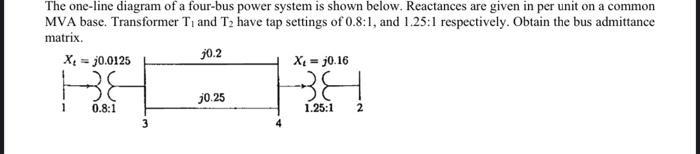

The one-line diagram of a four-bus power system is shown below. Reactances are given in per unit on a common MVA base. Transformer T and T2 have tap settings of 0.8:1, and 1.25:1 respectively. Obtain the bus admittance matrix X = 0.0125 10.2 X = 30.16 BE j0.25 0.8:1 1.25:1 2 3
