2. A non-inverting amplifier incorporates an opamp having an open-loop gain, Ao = 104, and bandwidth, fo = 100 kHz. (a)

[answerhappygod]

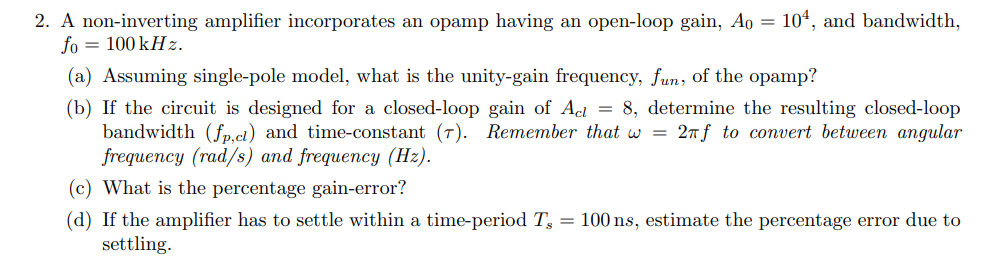

2 A Non Inverting Amplifier Incorporates An Opamp Having An Open Loop Gain Ao 104 And Bandwidth Fo 100 Khz A 1 (70.5 KiB) Viewed 32 times

MOSFET Parameters VDD = 1.8V KPn = µnCox = 200 µA/V 2 VTHN =
0.4V KPp = µpCox = 100 µA/V 2 |VTHP | = 0.4V
