(d) An engineering apprentice designed a three-phase machine so that the space vector of the magneto-motive force is Fs

Post by answerhappygod »

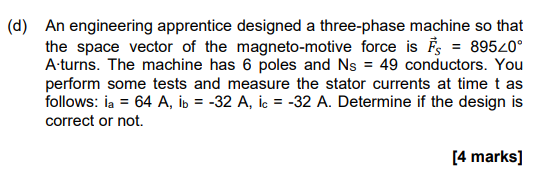

D An Engineering Apprentice Designed A Three Phase Machine So That The Space Vector Of The Magneto Motive Force Is Fs 1
D An Engineering Apprentice Designed A Three Phase Machine So That The Space Vector Of The Magneto Motive Force Is Fs 1 (35.92 KiB) Viewed 25 times
(d) An engineering apprentice designed a three-phase machine so that the space vector of the magneto-motive force is Fs = 89520° A-turns. The machine has 6 poles and Ns = 49 conductors. You perform some tests and measure the stator currents at time t as follows: ia = 64 A, ib = -32 A, ic = -32 A. Determine if the design is correct or not. [4 marks]
