2 By Using Only Kirchoff Voltage Law Kvl Kirchoff Current Law Kcl And Ohms Law Find The Value Of Vx Ix Vy Ly 1 (46 KiB) Viewed 42 times
please answer all the question as quick possible

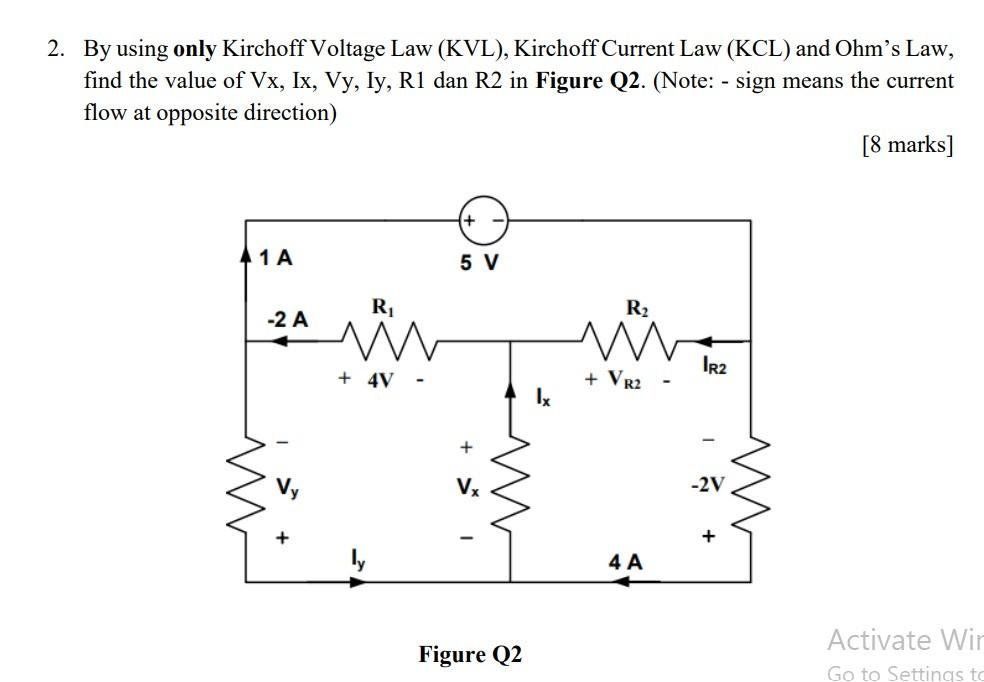

2. By using only Kirchoff Voltage Law (KVL), Kirchoff Current Law (KCL) and Ohms Law, find the value of Vx, Ix, Vy, ly, R1 dan R2 in Figure Q2. (Note: - sign means the current flow at opposite direction) [8 marks] + 1A 5 V R R2 -2 A M M IR2 + 4V + VR2 Ix Vy VX -2V + + Ty 4 A Figure Q2 Activate Wii Go to Settings to
