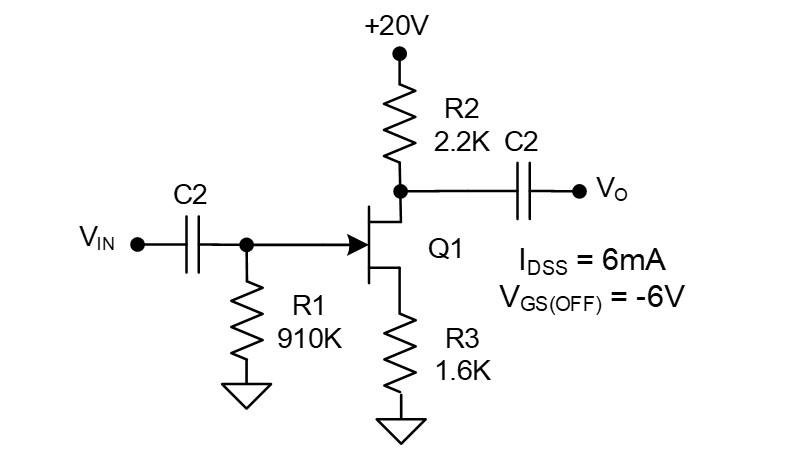

1. Plot the transconductance curve and
LOAD LINE
2. Calculate VDQ, VSQ, AND
VDSQ
3. What is the value of VGSQ and
IDQ from your graph.
