Question 1 (a) Simplify the block diagram of the system shown in Figure Q1a and calculate the equivalent transfer functi

Post by answerhappygod »

Question 1 A Simplify The Block Diagram Of The System Shown In Figure Q1a And Calculate The Equivalent Transfer Functi 1
Question 1 A Simplify The Block Diagram Of The System Shown In Figure Q1a And Calculate The Equivalent Transfer Functi 1 (39.59 KiB) Viewed 36 times

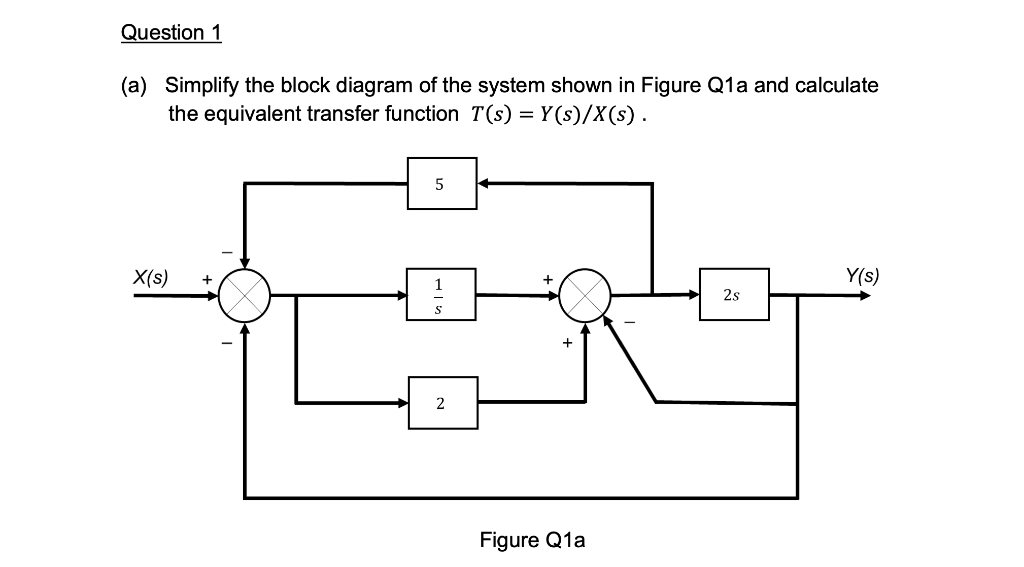

Question 1 (a) Simplify the block diagram of the system shown in Figure Q1a and calculate the equivalent transfer function T(s) = Y(s)/X(s). 5 X(s) Y(s) 2s 2 Figure Q1a
