The following data are obtained when open-circuit and short-circuit tests are performed on a single-phase, 50- KVA, 2400

Post by answerhappygod »

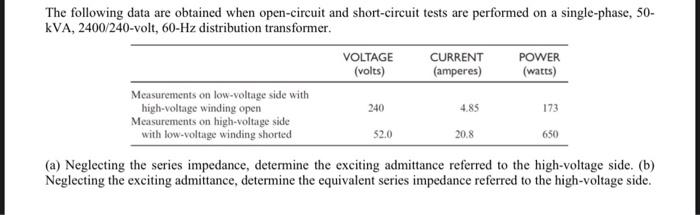

The Following Data Are Obtained When Open Circuit And Short Circuit Tests Are Performed On A Single Phase 50 Kva 2400 1
The Following Data Are Obtained When Open Circuit And Short Circuit Tests Are Performed On A Single Phase 50 Kva 2400 1 (24.43 KiB) Viewed 44 times
The following data are obtained when open-circuit and short-circuit tests are performed on a single-phase, 50- KVA, 2400/240 volt, 60-Hz distribution transformer. VOLTAGE CURRENT POWER (volts) (amperes) (watts) Measurements on low-voltage side with high-voltage winding open 240 Measurements on high-voltage side with low-voltage winding shorted 20.8 650 (a) Neglecting the series impedance, determine the exciting admittance referred to the high-voltage side. (b) Neglecting the exciting admittance, determine the equivalent series impedance referred to the high-voltage side. 4.85 173 52.0
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
