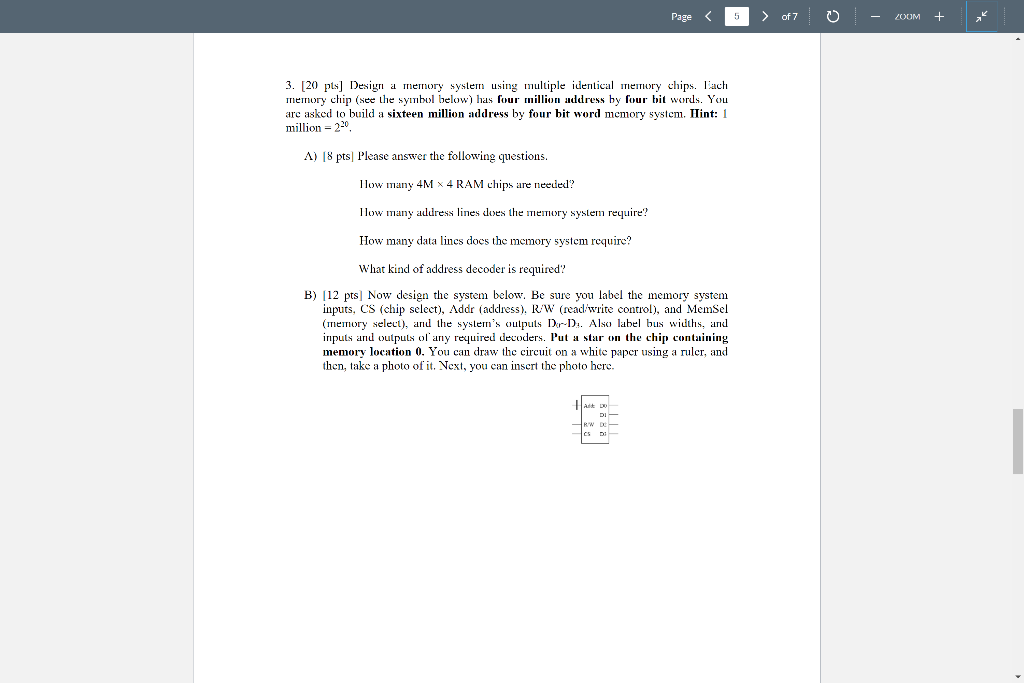

Page ZOOM 3. [20 pts] Design a memory system using multiple identical memory chips. Tach memory chip (see the symbol below) has four million address by four bit words. You are asked to build a sixteen million address by four bit word memory system. Hint: 1 million = 20 A) (8 pts) Please answer the following questions. llow many 4M X 4 RAM chips are needed? llow many address lines dues the memory system require? How many data lincs does the memory system require? What kind of address decoder is required? B) (12 pts Now design the system below. Be sure you label the memory system inputs, CS (chip select), Addr address). R/W (read/write control), and MemSel (memory select), and the system's outputs Dr D. Also label bus widths, and inputs and outpuls of any required decoders. Put a star on the chip containing memory location 0. You can draw the circuit on a white paper using a ruler, and then, take a photo of it. Next, you can insert the photo here. Hart 0 DI HRW -
