= Consider the circuit below, with C = 0.25F, C2 = 0.2F and L=2H, calculate the node voltages V, and V2. Select the corr

[answerhappygod]

Consider The Circuit Below With C 0 25f C2 0 2f And L 2h Calculate The Node Voltages V And V2 Select The Corr 1 (40.1 KiB) Viewed 42 times

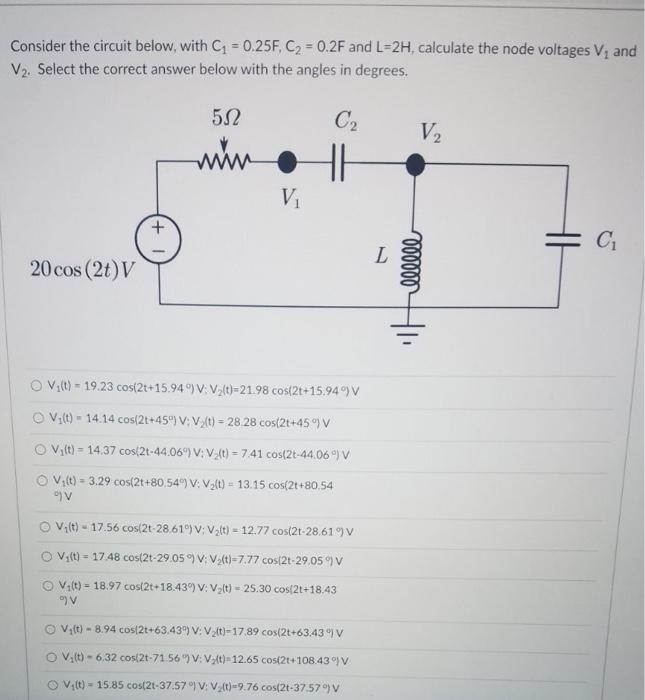

= Consider the circuit below, with C = 0.25F, C2 = 0.2F and L=2H, calculate the node voltages V, and V2. Select the correct answer below with the angles in degrees. 512 C2 V2 min HI V. + = C L 20 cos (2t) V 1000000 Hoi Vy(t) = 19.23 cos(2t+15.949): V (t)=21.98 cos/2t+15.949) OV (t) - 14.14 cos(2t+45°) V: V (t) = 28.28 cos(2t+45) OV (t) = 14.37 cos(2.44.069) V: V (t) = 7.41 cos(2-44.06) OV.(t) = 3.29 cos(2t+80.54%) V: V (t) = 13.15 cos(2+80.54 o V (t) - 17.56 cos(21-28.61"V: Vz(t) = 12.77 cos(21-28.61 9V Vy(t) = 17.48 cos(21-29.05 9V: V (t)-7.77 cos(2t-29,05 9V o V (t) = 18.97 cos(2t+18.439) V: Valt) - 25.30 cos(2t+18.43 V OV,t) - 8.94 cos(2t+63.439) V: V (t)-17.89 cos(2t+63.43 o V.lt) -6.32 cos/2t-71.569V V(t)=12.65 cos 2t+108.43) OV,t) - 15.85 cos(2t-37.57: V (t)=9.76 cos(2-37.579
