+ + ਅ W R 3R Vout VO 2R [16pts] Consider the network above with Vo = 23V, and R = 4k22. Treat the op-amp as real, with ß

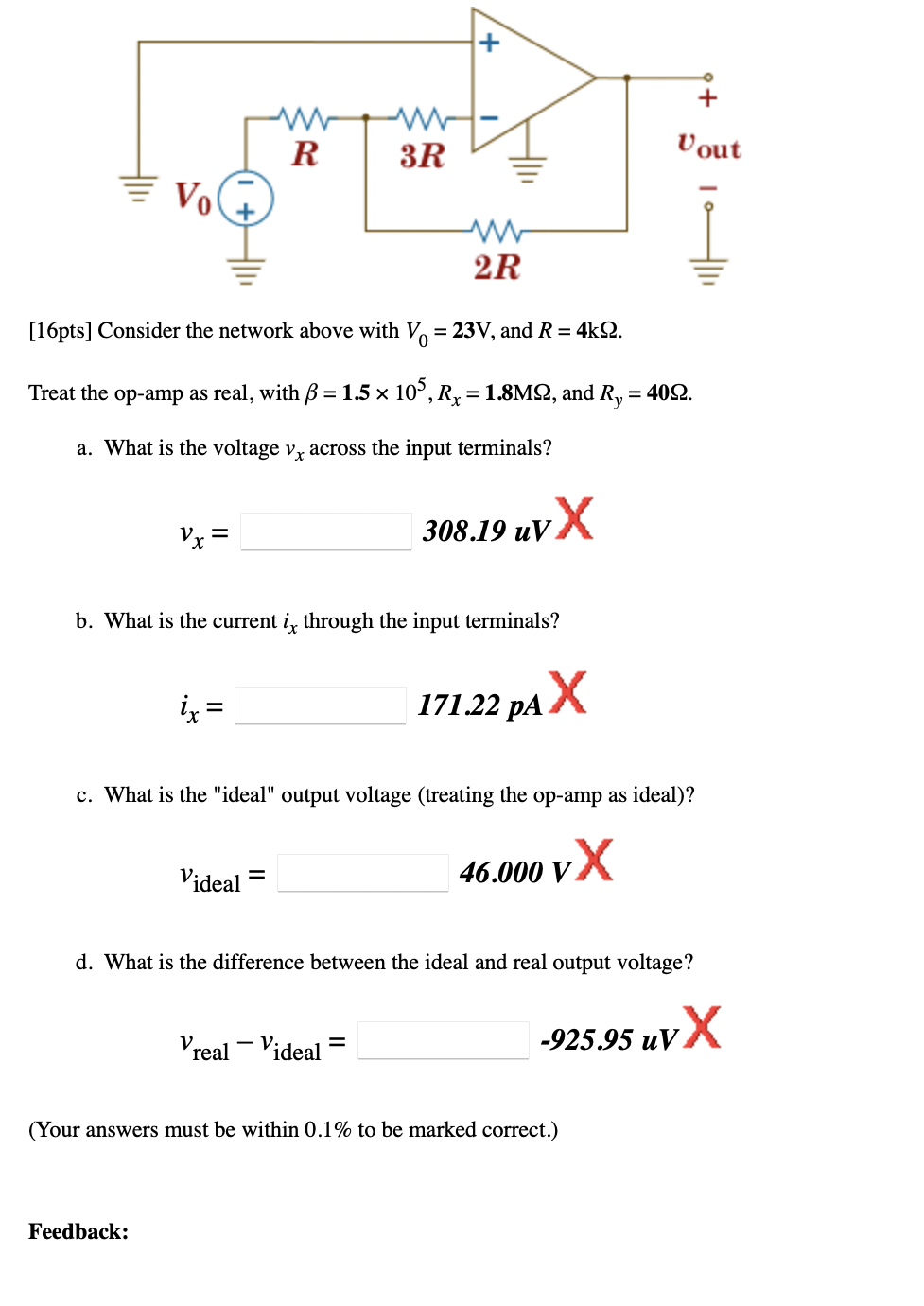

+ + ਅ W R 3R Vout VO 2R [16pts] Consider the network above with Vo = 23V, and R = 4k22. Treat the op-amp as real, with ß = 1.5 x 10%, Rx = 1.8M2, and Ry = 402. = a. What is the voltage Vx across the input terminals? Vr = 308.19 uvX b. What is the current iz through the input terminals? ix= = 171.22 PAX p c. What is the "ideal" output voltage (treating the op-amp as ideal)? Videal = 46.000 VX d. What is the difference between the ideal and real output voltage? - V X = -925.95 uV Vreal – Videal (Your answers must be within 0.1% to be marked correct.) Feedback:
